ODM OEM Patented Zero Leakage Magnetic Coupling Seal Agitator Chemical High Pressure Tank
| US$247,000.00-268,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FCHA
Function
Storage Pressure Vessel, Separation Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Application
Customized
Material
S30408, Q345r, S32168
Pressure
Customized
Storage Medium
Customized
Pressure Level
Customized
Condition
New
Rotation Speed
230r/Min
Power
110kw
Seal Type
Magnetic Coupling Seal Zero Leakage
Total Weight
47618kg
Lead Time
100 Days
Oversea Branch
California, USA
OEM
Available
ODM
Available
Specification
34.5m³
Trademark
LUHAO
Origin
China
HS Code
84198990
Product Description

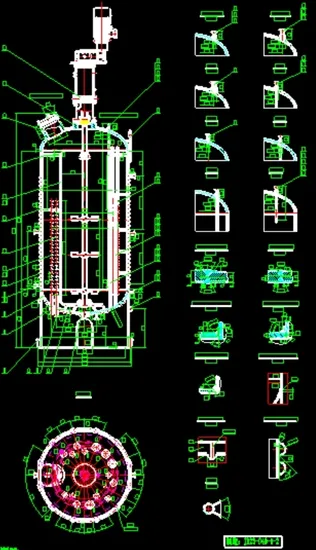

Vessel Capacity m³: 34.5 Material: S30408+Q345R Design pressure MPa: 7.0 Design temperature ºC: 100 Work pressure MPa: 6.0 Work temperature ºC: 80 Working life: 10 years External half tube Capacity m³: 1.9 Material: 20/Q345R Design pressure MPa: 0.6 Design temperature ºC: 165 Work pressure MPa: 0.5 Work temperature ºC: 150 Medium: Steam Heat exchange area m2: 85.5 Coil tube Capacity m³: 0.60 Material: S32168 Design pressure MPa: 0.6 Design temperature ºC: 30 Work pressure MPa: 0.5 Work temperature ºC: 7 Medium: 7ºC water Heat exchange area m2: 60.6 Total weight Kg: 47618| *For confidential reason, the drawing is in low definition. Please contact us for more information. |
https://luhaochemreactors.en.made-in-china.com/product-list-1.html
| LUHAO Chemical Machinery Co. Ltd | ||||||||||||||
| Pressure Vessel Design Information Collection Table | ||||||||||||||
| Vessel | Jacket (Coil) | |||||||||||||
| Work Medium | Name | |||||||||||||
| Components | ||||||||||||||
| Density (Kg/m³) | ||||||||||||||
| Characteristics | ||||||||||||||
| Viscosity (cP) | ||||||||||||||
| Flow Velocity(m³/h) | ||||||||||||||
| Design pressure (Mpa) | ||||||||||||||
| Work pressure (Mpa) | ||||||||||||||
| Design temperature(ºC) | ||||||||||||||
| Work temperature (ºC) | ||||||||||||||
| Wall temperature (ºC) | ||||||||||||||
| Diamter (mm) | ||||||||||||||
| Length (mm) | ||||||||||||||
| Capacity(m³) | ||||||||||||||
| Effective capacity (m³) | ||||||||||||||
| Corrosion allowance (mm) | ||||||||||||||
| Corrosion speed (mm/year) | ||||||||||||||
| Recommended Materials | ||||||||||||||
| Lowest value of average monthly temperature(ºC) | ||||||||||||||
| Site location | ||||||||||||||
| Installation condition | Indoor or Outdoor | |||||||||||||
| Catalyst Volume(m³) | ||||||||||||||
| Catalyst Density(Kg/m³) | ||||||||||||||
| Heat Transfer Area() | ||||||||||||||
| Coil Specification | ||||||||||||||
| Basic Wind Pressure(Mpa) | ||||||||||||||
| Seismic Basic Intensity | ||||||||||||||
| Ambient Temperature(ºC) | ||||||||||||||
| Site Type | ||||||||||||||
| Operating Mode | ||||||||||||||
| Insulation Materials | Name | |||||||||||||
| Thickness | ||||||||||||||
| Density (Kg/m³) | ||||||||||||||
| Seal Requirements | ||||||||||||||
| Liquid Level Gauge | ||||||||||||||
| Emergency Cut-off | ||||||||||||||
| Static Electricity Removal | ||||||||||||||
| Anti Eddy Current Requirement for Liquid Outlet | ||||||||||||||
| Installation and Mantainance Requirements | ||||||||||||||
| Expected Useful Life (years) | ||||||||||||||
| Safety accessories | Vessel | Jacket (Coil) | ||||||||||||
| Location | ||||||||||||||
| Type | ||||||||||||||
| Specification | ||||||||||||||
| Quantity | ||||||||||||||
| Set pressure(Mpa) | ||||||||||||||
| Burst disc | ||||||||||||||
| Burst pressure(Mpa) | ||||||||||||||
| Safety discharge(kg/h) | ||||||||||||||
| Agitator | Type | |||||||||||||
| Impeller Diameter(mm) | ||||||||||||||
| Speed(r/min) | ||||||||||||||
| Motor | Model | |||||||||||||
| Power(kw) | ||||||||||||||
| Explosion Proof Grade | ||||||||||||||
| Speed reducer | ||||||||||||||
| Piping Table | ||||||||||||||
| No. | Dimension | Pressure | Connection Size Standard | Connection Surface Type | Function | |||||||||
| a | ||||||||||||||
| b | ||||||||||||||
| c | ||||||||||||||
| d | ||||||||||||||
| e | ||||||||||||||
| f | ||||||||||||||
| g | ||||||||||||||
| h | ||||||||||||||
| j | ||||||||||||||
| k | ||||||||||||||
| Other Requirements if any | ||||||||||||||
