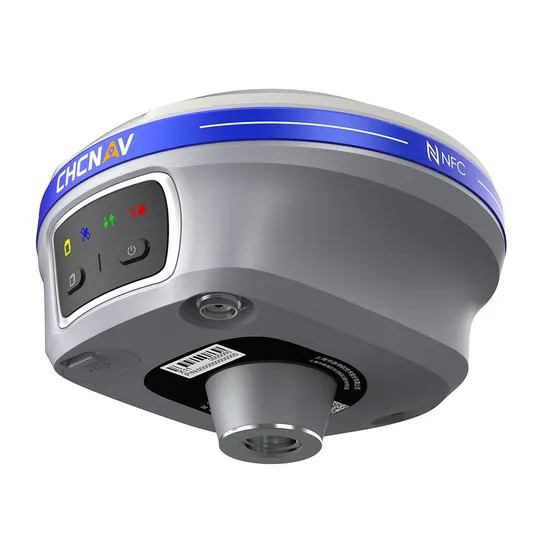

Chc X11 Gnss Rtk Handheld GPS High Precision Gnss Receiver Surveying Instrument

Product Description

Product DescriptionCHC X11 RTK Handheld GPS High Precision Gnss Receiver Surveying Instrument
Detailed Photos
Product Parameters

Project	Content	X11
Satellites and Accuracy	Satellite system	GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency
	Number of channels	1408
	Initialize reliability	99.90%
	No network continued test	Support high-precision solution, the base station can publish data such as power information
	Signal capture sensitivity	Typical value -162dbm, stronger ability to capture weak signal
	Satellite-based differential	Support L-Band function:
	(Optional)	Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level
		Support domestic satellite-based enhanced services (centimeter level)
		Support ground-based augmentation system differential services (centimeter level)
		Global satellite-based centimeter-level services can be opened
GNSS+Inertial Navigation[2]	IMU update rate	200Hz
	Slope	0-60 degrees
	Super inertial navigation	Support travel process to complete initialization, and support centering rod calibration
User interaction	Indicator light	1 satellite light + 1 differential data light + 1 static indicator light + 1 power light
	Button	Static toggle key + power/confirm key
	Web page	Support PC/mobile web pages
Camera	Function	Support visual stakeout
	Pixel	2MP
	Frame rate	25Hz
	Field of View (H, V)	75°, 75°
	Illumination	Starlight-level camera, still maintains full-color picture under 0.01lux illumination
Physical properties	Size	Φ133mm*87.6mm
	Weight	0.8 Kg (including battery)
	Material	magnesium alloy
	Operating temperature	-45ºC~+75ºC
	storage temperature	-55ºC~+85ºC
	waterproof breathable membrane	Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain
	Waterproof and dustproof	IP68 (Protection against 1 meter immersion in water for 30 minutes)
	Anti-collision	IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance)
Electrical properties	Battery	Built-in 6600mAh lithium battery
		The typical battery life of the mobile station is more than 16h
	Fast charge	Support fast charge, up to 24w fast charge
	Built-in storage	8GB, can support external expansion 128G, automatic cycle storage, disk
		After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key.
Data output	Differential data	RTCM2.X, RTCM3.X, CMR, CHC516
	Positioning data	NMEA-0183
	Static data	HCN, RINEX 2.11, RINEX3.02
Data communication	Wireless connection	Support Wi-Fi data link
	Network module	Handbook supports 4G full Netcom
	Radio	Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol
Advanced Features	One-click fix	Comes with a CORS account, which can be fixed at startup
	Smart service	Support CTI cloud service, provide cloud storage, function code sharing
control handbook	Model	HCE600 Android Measurement Handbook
	Operating system	Android 10
	CPU	Octa-core 2.0GHz processor
	Network	4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
	Operating temperature	-30ºC-+60ºC
	Storage temperature	-40ºC-+80ºC
	Waterproof and dustproof	IP68

Packaging & Shipping
Company ProfileJiangsu Bangjie Trading Co., Ltd. is a comprehensive trading company whose main business is surveying instruments, building materials and international trade. The company was registered in Nanjing, Jiangsu Province, the only megacity in the Yangtze River Delta. The company combined domestic sales with international trade earlier and was always guided by customer needs.
The company currently has three departments: surveying instrument department, building materials department and international trade department. We have a group of professionals who have been engaged in related industries for many years. We can provide you with more authoritative and convenient pre-sale consultation, sales cooperation, after-sales coordination and guidance, and provide comprehensive services.
At present, the company's main surveying instruments are: total station, GPS RTK, UAV, theodolite,plummet,auto level,laser rangefinder and surveying accessories.
Our Advantages1.More than 20 years of experience in the trade field.
2.Combined domestic sales with international trade earlier and was always quided by customer needs.
3.Provide more authoritative and convenient pre-sale consultation, sales cooperation, after-sales coordination and guidance, and provide comprehensive services.
4.All products will have been strictly quality checked in factory before sending out and all products have one year warranty.

FAQ
1. What's your payment method ?
We accept T/T in advance, L/C at sight, Western Union, Moneygram, Paypal, Secure Payment(******) and Credit Card.
2. How can you guarantee the safety of my funds?
Trust is always a big problem for international trade, we believe good business credit and
reputation is the most important for businessman. We recommend Trade Assurance service by ****** Group. We won't get the fund unless you get the product and confirm the payment.
3. What Countries do you ship to?
We ship goods to almost all countries by express, air or sea. And we will inform you if we can't ship to your country.
4. Are your products in stock?
Most items are usually in stock. It all depends on promotions we run, demand at manufacturers and suppliers. Most delivery will be made within 3 working days after payment confirmed.
5. Do you sell used surveying equipment?
We do not sell any used equipment. Everything we sell is brand new. For some equipment we may need to test or check the language before delivery.
6. Do you have other items that are not displayed on your website?
Yes, we have other items that we do not display on our website. Please contact us and let us know what you are looking for as long as its surveying related.
