High Performance Coaxial Cable Rg59 with Power Cable for Surveillance Camera Security Cable

Product Description

RG59 Siamese CCTV cable allows installers to run both the video and power to security cameras (analog CCTV, 720p and 1080p HD cameras) using a single cable run.
RG-59 coaxial cable comes in 500 and 1000 foot spools and is available in black or white colors.
The RG59 cable that CCTV Camera Pros supplies has a solid copper core and 95% copper braided shielding.
This is the best type of coax cable to use for CCTV and HD CCTV installations.

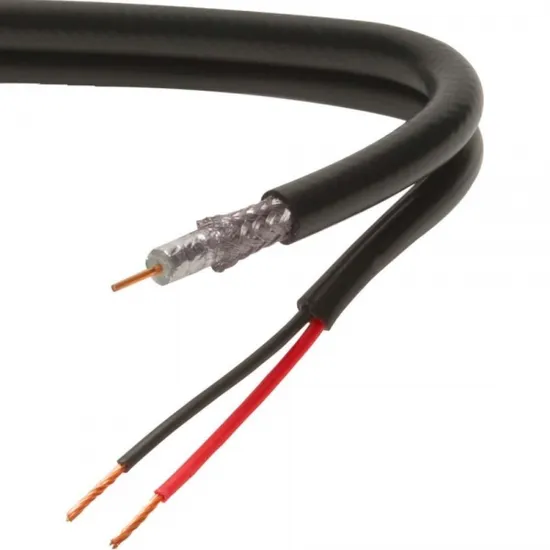

RG59 with power cable
0.64Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power
0.81Cu/CCS+3.66FPE+Bonded foil+90% Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power
Description for RG59 with power cable
Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of
communication system, building cabling and CATV; the most striking features are broadband and high
speed; currently, also widely used in the multimedia transmission field; conforms to RG59.
Features

Specificaitons
Physical dimensions
component	Standard-shield		Tri-shield		Quad-shield
	inchs	mm	inchs	mm	inchs	mm
Nominal center conductor diameter	0.032	0.81	0.032	0.81	0.032	0.81
Nominal diameter over dielectric	0.144	3.66	0.144	3.66	0.14	3.66
Nominal diameter over first shield	0.151	3.84	0.151	3.84	0.151	3.84
Nominal diameter over jacket	0.24	6.1	0.24	6.1	0.265	6.73
Nominal jacket wall thickness	0.03	0.76	0.032	0.81	0.034	0.86
Nominal diameter of	0.051(single)	1.3	0.051(single)	1.3	0.051(single)	1.3
steel messenger	0.072(dual)	1.83	0.072(dual)	1.83	0.072(dual)	1.83
Electrial Characteristics
Nominal impedance				75ohms
Nominal Velocity of propagation				0.85
Attenuation(20ºC)
Frequency(MHz)		Maximum(dB/100ft)		Maximum(dB/100m)
55		2.05		6.73
211		3.8		12.47
350		4.8		15.75
450		5.4		17.72
550		5.95		19.52
750		6.97		22.87
865		7.52		24.67
1000		8.12		26.64
