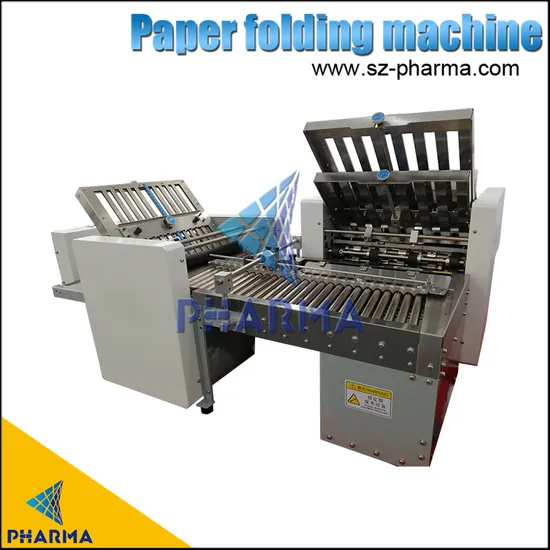

High Speed Cross Fold Paper Folding Machine for User Manuals
Basic Info.
Model NO.
SZP
Product Name
A3/A4 Paper Folding Machine
Min. Paper Size
50 (W)X50(L)mm
Max. Paper Size
220(W)X360(L)mm
Paper Type
50g-120g Fine Quality Paper
Folding Table Quantity
2
Speed
160sheets/Min
Paper Loading Capacity
200-300 Sheets
Application
Manual/Leaflet
Function
Counting and Folding
OEM
Yes
Power Supply
220V 50/60Hz
Counter
4 Digits (Ascending), 3 Digits (Descending)
Feeding Mode
Friction Feed
Delivery
by Sea, Air, Express
Weight
19-30kg
Transport Package
Export Wooden Case
Specification
670*360*425mm
Trademark
PHARMA
Origin
China
Production Capacity
100sets/Week
Product Description
| Feeding Mode | Friction feed |
| Power supply | 220V 50/60Hz 0.4A 40W |
| Paper Size | Max.220(W)x360(L)mm Min.50 (W)x50(L)mm |
| Paper Type | 50g-120g Fine quality paper, Recycled paper |
| Folding table quantity | 2 |
| Counter | 4 digits (ascending), 3 digits (descending) |
| Speed | 160 sheets/min. (220V, A4 fine quality paper 80 g/m2) |
| Paper loading capacity | 300sheets |
| Dimensions | 670 (W)× 360 (D)×425 (H)mm |
| Net weight | 19kg |
manufacturing companies, brochures, official documents, business letters. Main features
Machine adopts imported infrared sensor switch, which has high sensitivity, accurate paper separation and no double sheet;
The paper feeding pressure is adjusted in four gear positions to meet the different specifications of paper feeding smoothly,
suitable for coated paper folding;
There is a counter to count the number of origami, and automatically stop when the set value is reached;
This machine adopts advanced full belt gearless transmission system with low noise;
With circuit overload protection function, it will automatically power off and stop when overloaded.
