Precision Carbon Steel Pipe for Wholesale and Precision Tube High Quality

Product Description

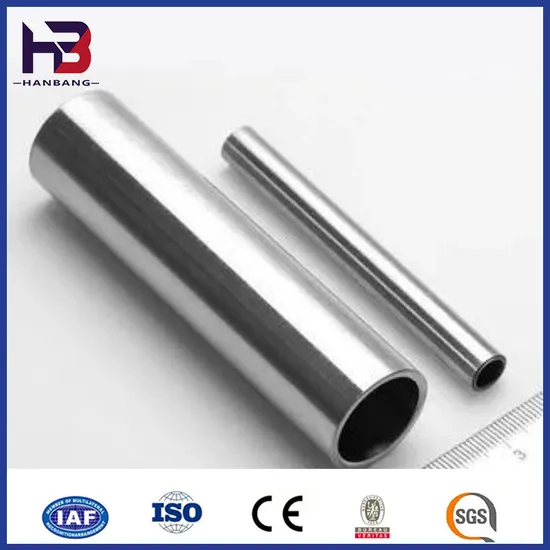

Product Description Precision tube is a high-precision, high-brightness seamless steel tube produced through cold drawing or cold rolling processes. Its inner and outer diameter dimensions can be accurate to within 0.2mm. It ensures bending and torsional strength while being light in weight, so it is widely used in manufacturing precision mechanical parts and engineering structures. It is also commonly used to produce various conventional weapons, barrels, shells, bearings, etc.
Precision steel pipe is a high-precision cold-drawn seamless steel pipe with the characteristics of high accuracy in inner and outer diameter dimensions, wall thickness, good surface finish, smooth inner and outer surfaces, and no impact burrs. Precision steel pipes are usually made of carbon steel, alloy steel, stainless steel and other materials, and are widely used in manufacturing machines, automobiles, aerospace, health equipment and other fields.
Mechanical parts manufacturing: As a raw material for mechanical parts processing, precision steel pipes are widely used in the manufacturing of high-precision shafts, tubes, rollers, pins, etc.
Automobile manufacturing: Precision steel pipes are used in components such as cylinders, sensors, fuel injection systems, and exhaust systems in automobile manufacturing.
Aerospace manufacturing: Due to the characteristics of high precision, thermal strength, corrosion resistance and high wear resistance, precision steel pipes are widely used in engines, leading edge flaps, missile control systems and other parts in the aerospace industry.
Instrument and medical equipment manufacturing: Precision steel pipes are strong, corrosion-resistant and pressure-resistant. They are widely used in high-precision instrument manufacturing, pharmaceutical pipelines, medical equipment and other fields. Hanbang Precision steel pipe is a key material used in manufacturing high-precision and high-performance mechanical equipment. It has excellent physical and mechanical properties and is widely used in aerospace, automobile manufacturing, petrochemical and other fields.
Material characteristics: 1. High precision: Precision steel pipes have high diameter accuracy and wall thickness accuracy, and can meet the accuracy requirements of various mechanical equipment. 2. Excellent mechanical properties 3. Good corrosion resistance 4. Excellent processing performance
Production process: The production process of precision steel pipes mainly includes steps such as cold drawing, cold rolling and cold extrusion.
1. Cold drawing: The most common production process of precision steel pipes is cold drawing, which means cold processing of hot-rolled steel pipes, and drawing them to make the diameter and wall thickness meet the requirements.
2. Cold rolling: The cold rolling process is to cold process the hot-rolled steel billet. Through multiple passes of rolling and drawing, the size of the steel pipe is gradu.
Application fields
Precision steel pipes are widely used in aerospace, automobile manufacturing, petrochemical and other fields, with the following typical applications:
1. Aerospace field: Precision steel pipes are used to manufacture high-pressure, high-temperature hydraulic systems and gas systems such as aircraft engines, missiles and rockets.
2. Automobile manufacturing field: Precision steel pipes are used to manufacture key components such as automobile chassis, engines and transmissions to improve the safety and reliability of automobiles.
3. Petrochemical industry: Precision steel pipes are used in oil and natural gas extraction and transportation pipelines. They have the characteristics of high pressure resistance and corrosion resistance to ensure the safe operation of petrochemical equipment.
4. Machinery manufacturing field: Precision steel pipes are used to manufacture various precision instruments, meters and mechanical parts, such as high-precision bearings, instrument cases, etc.ally adjusted and controlled.
3. Cold extrusion: The cold extrusion process is to heat the steel billet to an appropriate temperature and then extrude it through a special die to form a hollow pipe. The cold extrusion process can produce precision steel pipes with uniform wall thickness and high internal and external surface finish. Detailed Photos

Thickness±10% (smallest±0.12mm)
		0.5	-0.8	1	-1.2	1.5	-1.8	2
outer diameter		Inner diameter (nominal value and allowable deviation)
Size	Allowable deviation
4	±0.10	3±0.30	2.4±0.30	2±0.30
6		5±0.25	4.4±0.25	4±0.25	3.6±0.30
8		7±0.20	6.4±0.20	6±0.20	5.6±0.30	5±0.30	4.4±0.35	4±0.35
10		9±0.15	8.4±0.15	8±0.20	7.6±0.25	7±0.25	6.4±0.30	6±0.30
12		11±0.15	l0.4±0.15	10±0.15	9.6±0,20	9±0.20	8.4±0.25	8±0.25
14		13±0.10	12.4±0.10	12±0.10	11.6±0.15	11±0.15	10.4±0.20	10±0.20
16		15±0.10	14.4±0.10	14±0.10	13.6±0.10	13±0.10	12.4±0.15	12±0.15
25		24±0.10	23.4±0.10	23±0.10	22.6±0.10	22±0.10	21.4±0.10	21±0.10
-26		25±0.10	24.4±0.10	24±0.10	23.6±0.10	23±0.10	22.4±0.10	22±0.10
28		27±0.10	26.4±0.10	26±0.10	25.6±0.10	25±0.10	24.4±0.10	24±0.10
30		29±0.10	28.4±0.10	28±0.10	27.6±0.10	27±0.10	26.4±0.10	26±0.10
35		34±0.15	33.4±0.15	33±0.15	32.6±0.15	32±0.15	31.4±0.15	3l±0.15
38		37±0.15	36.4±0.15	36±0.15	35.6±0.15	35±0.15	34.4±0.15	34±0.15
40		39±0.15	38.4±0.15	38±0.15	37.6±0.15	37±0.15	36.4±0.15	36±0.15
45				43±0.20	42.6±0.20	42±0.20	41.4±0.20	41±0.20
50				48±0.20	47.6±0.20	47±0.20	46.4±0.20	46±0.20
55	±0.25			53±0.25	52.6±0.25	52±0.25	51.4±0.25	5l±0.25
60				58±0.25	57.6±0.25	57±0.25	56.4±0.25	56±0.25
70				68±0.30	67.6±0.30	67±0.30	66.4±0.30	66±0.30
76	±0.35			74±0.35	73.6±0.35	73±0.35	72.4±0.35	72±0.35
80				78±0.35	77.6±0.35	77±0.35	76.4±0.35	76±0.35
90	±0.40					87±0.40	86.4±0.40	86±0.40
100	±0.45						96.4±0.45	96±0.45
110	±0.50							106±0.50
120								116±0.50
150	±0.75
180	±0.90
200	±1.0

Chemical composition(%) of precision pipe's commin grade

Standard	Grade	C	Si	Mn	s	p	Cr
GB/T 699 GB/T 3639 GB3077 GB/T1591 GB/T 8163-2018	10#	0.07~0.13	0.17~0.37	0.35~0.65	≤0.035	≤0.035	\
	20#	0.17~0.23	0.17~0.37	0.35~0.65	≤0.035	≤0.035	\
	35#	0.32~0.39	0.17~0.37	0.35~0.65	≤0.035	≤0.035	\
	45#	0.42~0.50	0.17~0.37	0.50~0.80	≤0.035	≤0.035	\
	40Cr	0.37~0.44	0.17~0.37	0.50~0.80	≤0.035	≤0.035	0.08~1.10
	25Mn	0.22~0.29	0.17~0.37	0.70~1.00	≤0.035	≤0.035	≤0.25
	Q345B	≤0.20	≤o.50	≤1.7	≤0.035	≤0.035	≤0.3
	37Mn5	0.30~0.39	0.15~0.30	1.20~1.50	≤0.015	≤0.020	\

Conventional mechanical properties of precision pipe

Standard	Grade	Delivery Conditions
		BK(hard)		BKW(soft)
		Tensil Stength(MPa)	Make percentage elongation(%)	Tensile stength(MPa)	Make percentage elongation(%)
GB/T 3639 GB 3077	20#	≥550	≥10	≥490	≥15
	25Mn	≥600	≥12	≥540	≥15
	Q345B	≥620	≥12	≥550	≥15
	45#	≥645	≥8	≥625	≥15
	40Cr	≥784	≥14	\	\
	37Mn5	≥784	≥14	\	\

Dimensional tolerances of inner diameter

Standard	Inner Diameter(mm)	Inner Diameter Deviation(mm)
GB1801-79		H7	H8	H9	H10
	30	0~+21	0~+33	0~+52	0~+84
	30-50	0~+25	0~+39	0~+62	0~+100
	50-80	0~+30	0~+46	0~+74	0~+120
	80-120	0~+35	0~+54	0~+87	0~+140
	120-180	0~+40	0~+63	0~+100	0~+160
	180-250	0~+46	0~+72	0~+115	0~+185
	250-315	0~+52	0~+81	0~+170	0~+210
	315-400	0~+57	0~+89	0~+140	0~+230

Process flow Quality inspection
