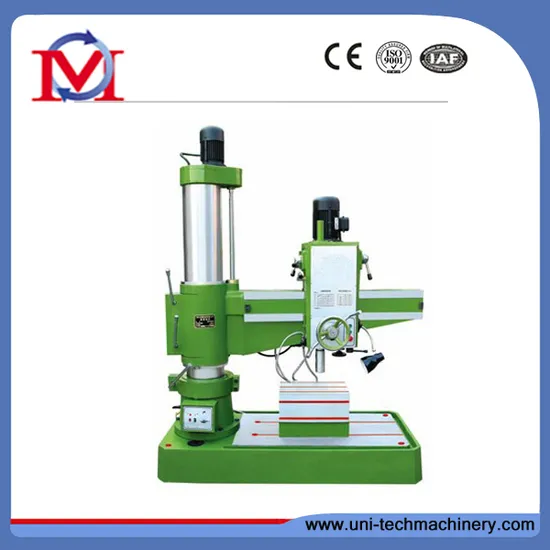

Chinese Manufacturer 40mm Drilling Capacity Radial Arm Drilling Machine (Z3040X10)
| US$3,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040X10
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
None
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Dia(Steel/Iron)(mm)
35/40
Distance Between Spindle to Column(mm)
280/1290
Horizontal Movement of Spindle Box (mm)
1020
Distance Between Spindle to Base(mm)
235-1100
Spindle Travel(mm)
195
Spindle Taper
Mt4
Spindle Speed(6steps)(R/Min)
38-947
Max Feed Resistance of Spindle(N)
6300
Radial Turn Angle
360°
Main Motor(Kw)
3
Transport Package
Wood Case/Plywood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets/Month
Product Description
Product DescriptionChinese manufacturer 40mm drilling capacity radial arm drilling machine(Z3040X10)
Main Features:
Inner-outer column.
Mechnical clamping for the column and mechincal Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.
Product Parameters
Specification:
| Model | Z3032X10 | Z3040X10 |
| Max.Drilling capacity (mm) | 32 | 40 |
| Distance spindle axis to column generating line (mm) | 200-1000 | 200-1000 |
| Diameter of column (mm) | 240 | 240 |
| Spindle taper | MT4 | MT4 |
| Spindle travel (mm) | 250 | 250 |
| Spindle speeds range (r/min) | 71-1800 | 71-1800 |
| Spindle speeds series | 8 | 8 |
| Range of Spindle feeds (r/min) | 0.13-0.54 | 0.13-0.54 |
| Mpindle Spindle feeds | 4 | 4 |
| Max.Distance spindle nose to working surface of base (mm) | 264-1064 | 264-1064 |
| Dimension of worktable (mm) | 400X450X400 | 400X450X400 |
| Dimension of base (mm) | 1500X740X160 | 1500X740X160 |
| Overall Size (mm) | 173X75X236 | 173X75X236 |
| Power of Main motor (kW) | 2.2 | 3 |
| G.W/N.W (kg) | 1600/1530 | 1600/1530 |
| Packing dimension (cm) | 187X97X220 | 187X97X220 |
Standard Accessories:
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
