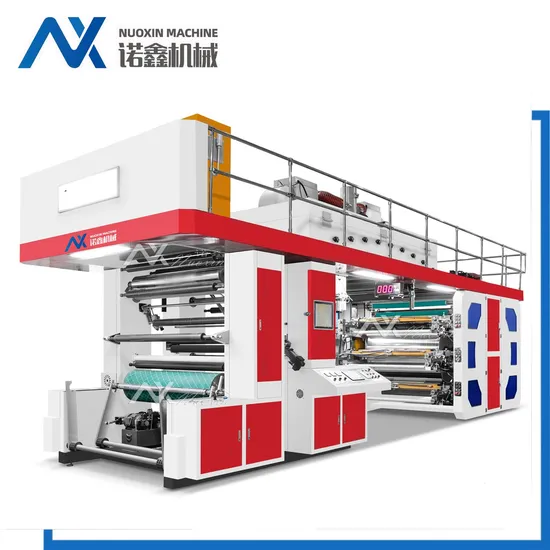

6 Color Ci Center Drum Plastic Film Flexographic Printing Machine
| US$60,000.00-120,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
NXCI-61200
Printing Page
Single Faced
Printing Color
6 Colors
Anilox Roller
Ceramic Anilox Roller
Dryer
IR
Type
Ink Jet
Embossing Structure
Flat-Bed Cylinder Press
Structure
Satellite
Application
Flexible Packaging Printing
Automatic Grade
Semi-Automatic
Printing Speed
250m/Min
Feeding Width
1200mm
Printing Width
1160mm
Dr Blade
Closed Chamber Dr Blade
Ink Pump
Pneumatic Type
Register Color
Semi-Automatic
Cylinder Move
Semi-Automatic
Touch Screen
PLC
Camera
Video Camera
Crane
Motorized
Unwind Way
Motor Drive
Rewind Way
Servo Motor Control
Motor
Siemens
Inverter
China Inovance
Transport Package
Iron Pallets
Specification
600.800.1000.1200.1400mm.
Trademark
NUOXIN
Origin
Ruian, China
HS Code
8443160090
Production Capacity
20sets/Month
Packaging & Delivery
Package Size
100.00cm * 280.00cm * 400.00cm
Package Gross Weight
10000.000kg
Product Description
Company Profile1. suitable material:
1.drum rolling type
2. PE, HDPE, LDPE. PP. BOPP….
3.Suitable water -base ink or oil-base ink .
4.Suitable: resin or rubber plate, thickness 1.7mm (or follow requested)
Characteristic
1,The machine introduction & absorption of European technology / process manufacturing, supporting / full functional, has the following features:
2,After mounting the plate and registration, no longer need registration, improve yield;
3,Replacing 1 set of Plate Roller (unloaded 8pcs old roller, installed eight new roller after tightening), only 20 Minute registration can be done by printing;
4,The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
5,Maximum production machine speed up 250m/min, registration accuracy ±0.15mm.
6,The overlay accuracy does not change during lifting running speed up or down
7,When machine stop, Tension can be maintained, the substrate is not deviation shift;
8,The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield;
9` With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
| Model | NXCI-41200 | NXCI-61200 |
| Color | 4 color | 6 color |
| Max. web width | 1200mm | 1200mm |
| Max. printing width | 1150mm | 1150mm |
| Printing material | 40-350g/m2 paper, non woven etc. Plastic film, BOPP, PE, PET, NY PE breathable film Etc. .......... | |
| Max. Mechanical Speed | 250m/min | |
| Max. Printing Speed | 200m/min | |
| Printing repeat | 300-800mm | |
| Max.unwind/rewind dia. | φ1200mm | |
| Printing way | Full width on one side | |
| Printing plate thickness | Photopolymer plate 1.14mm or 1.7mm (customized) | |
Nuoxin is continuously seeking for development of their products. For this reason, we has the right to supply the improved the product without advance notice.
Detailed Photos
Product Parameters
Our Advantages
After Sales Service
