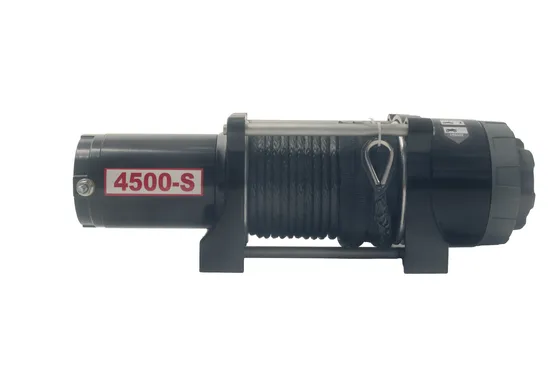

ATV Electric Winch with 4500lbs
| US$80.00-99.00 | 4 Pieces (MOQ) |
Basic Info.
Model NO.
TD4500S
Type
Electric Winch
Power Type
Permanent-magnet DC
Pull Direction
Forward
Electric Winch Model
ATV
Working Voltage of Electric Winch
Low Voltage
Brand
Hb
Applicable Environment
Beach
Certification
CE
Transport Package
Export Carton Box
Specification
376(L) mm X 117.2 (W) mm X123 (H) mm
Trademark
HB
Origin
China
HS Code
84253190
Production Capacity
6000/Per Month
Product Description
If you are looking for a reliable and go anywhere winch, please look no further, this 1.61 HP winch is electrically powered that is able to generate 4,500 lbs of hefty pulling power.SPECIFICATIONS:
Rated line pull: 4500 lbs.(2041 kg)
Gear reduction ratio:166:1
Motor: Permanent magnet motor(Input Power):1.61 hp / 1.2kW (DC 12V)
Free Spooling Clutch:Turn
Braking action:Automatic in the drum
Overall dimensions: 14.80" x 4.61" x 4.84" (376 mm X 117.2 mm X123 mm)
Drum size: Ø 2.24" x 4.72"(Ø 57 mm x 120 mm)
Rope: Ø 7/32" x60'( Ø 5.6mm x 15.3 m)
Mounting bolt pattern :6.57" x 2.99"(167mm x 76 mm)
12 DC Performance specs (First layer of drum)
| Line pull | Line speed | Motor | Pull by layer |
| lbs. (kg) | ft/min (m/min) | Current | Layer/Lbs. (kg) |
| 0 | 19.4 (5.9) | 20 amps | 1/4500 (2041) |
| 500 (227) | 16.7 (5.1) | 45 amps | 2/3817 (1731) |
| 1000 (454) | 15.1 (4.6) | 70 amps | 3/3314 (1503) |
| 1500 (680) | 14.4 (4.4) | 100 amps | 4/2928 (1328) |
| 2000 (907) | 13.5 (4.1) | 120 amps | |
| 2500 (1134) | 11.8 (3.6) | 145 amps | |
| 3000 (1361) | 10.8 (3.3) | 165 amps | |
| 3500 (1588) | 9.8 (3.0) | 180 amps | |
| 4000 (1814) | 9.2 (2.8) | 200 amps | |
| 4500 (2041) | 8.2 (2.5) | 220 amps |
G.W/N.W:13.6/11.8kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
One 20 feet container can fit in 720 PCS winches.
Standard accessories as below:
FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
We can sure within 30-35 days delivery time, but depends on the quantity !
