PE Water Barrier Making Machinery Traffic Water-Filled Jersey Barrier Blow Moulding Machine

Product Description

Product Description

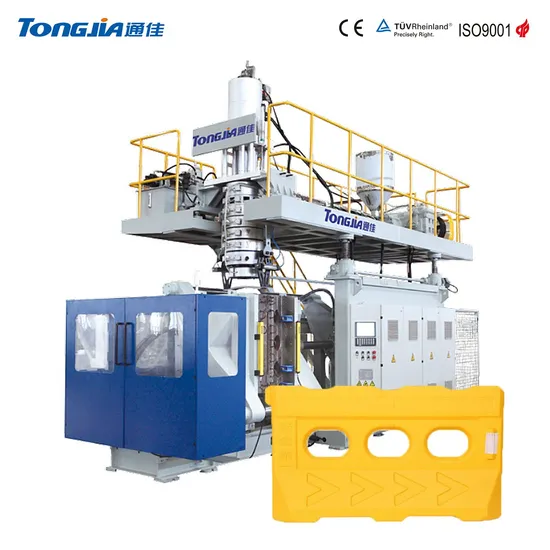

Plastic Traffic Water-Filled Barrier Blow Molding Machine

Configuration
Clampingsystem	Diagonal double tie bar center clamping bi-diredional synchronous high precision linear guideway clamping device
Extrusion system	Hardened face gear reducer + Imported frequency inverter
Die head system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve + hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy)

Parameters
Specifications	Units	TJ-HB160SP	TJ-HB160SP2	TJ-HB160SP3	TJ-HB160SP5	TJ-KB1000SP6
Material		HDPE	HDPE	HDPE	HDPE	HDPE
Die head quantity	Set	1	1	1	1	1
Machine dimension	M	6 8x4.0x5.0	6 8x4.0x5.0	8.0×4.5×6.0	6.8×4.0×5.0	9.1×5.6×6.3
Machine weight	Ton	23	23	30	24	25
Die-head
Accumulatorcapacity	L	20/30	20/30	20/30/40	16/20	30
Max.diameter of die	mm	500/650	500/650	500/750/850	400/500	750
Die head heating power	KW	45/54	45/54	45/54/58	38/45	54
Die head heating zone quantity	zone	4/5	4/5	4/5	3/4	5
Clamping Unit
Clamping force	KN	660	660	660	660	1200
Distance between platens	mm	700-1500	700-1500	700-1500	700-1500	900-2200
Mold platen size	mm	1100X1400	1100X1400	1100X1400	1100X1400	1400×1900
Extruder unit
Screw diameter	mm	100	100	120	100High calcium	120High calcium
Screw L/D ratio	L/D	25	30	30	30	30
HDPE Plasticizing capacity	Kg/h	220	300	400	260	400
Screw heating zone quantity	zone	5	5	6	5	5
Screw heating power	KW	23	28	36	28	36
Extruder driving power	KW	55	90	132	55	110
Power
Installed capacity power	KW	164	204	263	162	242
Hydraulic drive power	KW	37+4/7.5	37+4/7.5	37+4	37+4	37+7.5
Cooling water consumption	m3/h	12	12	18	18	18
Cooling water pressure	Mpa	0 3-0.6	0 3-0.6	0 3-0.6	0 3-0.6	0 3-0.6
Air pressure	Mpa	0.8	0.8	0.8	0.8	0.8
Air consumption	m3/min	1.6	1.6	2	2	2

About us
Series of automatic blow molding machine include: extrusion blow molding machine,plastic bottling blow molding machine,daily chemical packaging blow molder, lubricant oil blow molding machinery, pharmaceutical / medicine bottle blow moulding machine, food packaging bottle blow molding equipment, pesticide bottle blow molder machine, plastic stacking barrel blow molding machine, large hollow blow molding equipment and special-shaped hollow molding machine etc.
Shandong Tongjia Machinery Co., LTD,located in High-New Technology Industry Development Zone of Jining City, Shandong Province. We are a science, industry and trade integration modern large enterprise group, one of the largest professional manufacturer of plastic machinery in China, Vice President of China Plastics Machinery Industry Association, Vice President of China plastics Processing Industry Association, the National Key High-Tech Enterprises and Chinese Patent Star Enterprise.
With the mind of "Trust comes from quality" , Tongjia group with strong comprehensive strength, exquisite technology, perfect after-sale service system, as always, is willing to make progress together with customers from domestic and overseas to create new glories.
After Sales Service
1. 12 Hours----We will give you reply within 12 hours.
2. Pre-sale service----We provide your professional service in fluent English.
3. Delivery----1~3 months.
4. Free Design----Professional engineers, free designs.
5. Certificates----The third-party verification service provider.
6. After sales service----OEM service provide; Design service provide; Buyer label provided.
Packaging & Shipping
Standard export packaging: 1. Apply anti-rust oil to the equipment easy rusty part and carry out anti-rust treatment.
2. The whole machine was wrapped with stretch film for protection, and the equipment control cabinetand other components are protected against shock with packaging materials like XPS foam board and EPE foam sheet.
3. Reinforce easy-move part of the equipment.
4. Put desiccant before packaging to avoid rusting equipment during sea transportation.
5. Use New Zealand imported bluish pine wood or American Douglas fir wood as the bottom support 12mm multi-layer plywood for side panels, all wood fumigated. We cooperated with experienced andprofessional exported wooden packaging manufacturing enterprises to make final package.
FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still
can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online
