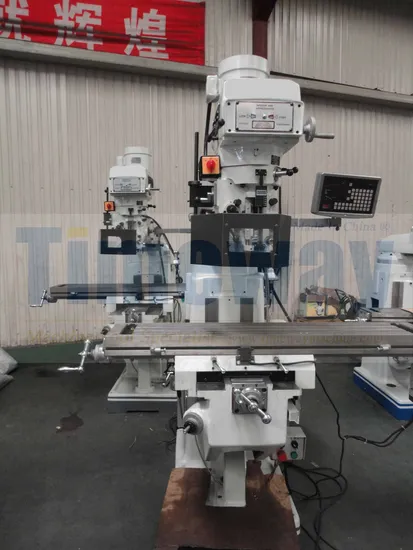

Turret Milling Machine / Universal Milling Machine / Vertical Milling Machine

Product Description

Note:
1. X,Y axis adopt Auto. feed gear box as Standard (M250U).
2. Z-axis adopts high speed lifting motor as Standard (M300, M300A, M330, M330A).
3. All models equip the Taiwan Made Step Pulley Milling Head as Standard.(Variable Speed Stepless Head as Optional)
*** Standard accessories:
Taiwan Made Step Pulley Milling Head, Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box. Operation Manual(English Edition)

*** Optional accessories:
Digital readout system(D.R.O), Machine vise, Power feed unit, Gear box power feed, Clamping kits, ISO40 collet chuck, R8 collet chuck, Oil collecting plate, Plastic splash guard, Cooling system

SPECIFICATION

UNIT

M230A

M230B

M250

M250A

M250B

M250U

M250C

M250D

M300

M300A

M330

M330A

Table Size (W x L)

Inch

9"x42"

10"x50"

10"x50"

10"x50"

12"x54"

13"x54"

9"x49"

10"x54"

10"x54"

12"x60"

13"x60"

Longitudianl Travel (X)

mm

650 / 840

850 / 950

770

850 / 950

870 / 1000

840 / 1000

Cross Travel (Y)

mm

305

420

400

420

380

368

Vertical Travel (Z)

mm

400

420

400

420

430

450

T-slot No. x Size

mm

3 x 16

Over Ram Travel

mm

312

470

500

Spindle To Table

mm

0-415

0-405

0-350

0-450

Spindle Taper

-

R8 (Optional : NT30/NT40)

NT40

Spindle Travel

mm

127 mm

Spindle Speed

r.p.m

50HZ: 65-4500 60HZ: 80-5440 (16 Steps)

Auto. Quill Feed

mm/r

Three steps: 0.04 (0.0015″) / 0.08 (0.003″) / 0.15(0.006″)

Spindle Motor

HP

3HP

5HP

Head Swivel (L & R)

°

90°

Head Tilting ( F & B)

°

45°

Fix

45°

Fix

45°

Fix

X.Y.Z Guide Way

-

Dimension of package

One

mm

1400x1476x2030

1516x1550x2080

1566x1650x2080

1800x2016x2180

Two

mm

1450x1570x2080

1650x1790x2170

1720x1800x2175

1800x2200x2180

Three

mm

1450x2180x2080

1650x2285x2235

-

-

Gross Weight

kg

1100

1160

1550

1380

1420

1650

1590

1590

1700

1750

2300

2350

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
