Wholesale Price for PARA-Aramid Kevlar Yarn Sewing Thread Strength PARA Aramid Kevlar Fiber Aramid Yarn

Product Description

Brief introduction:

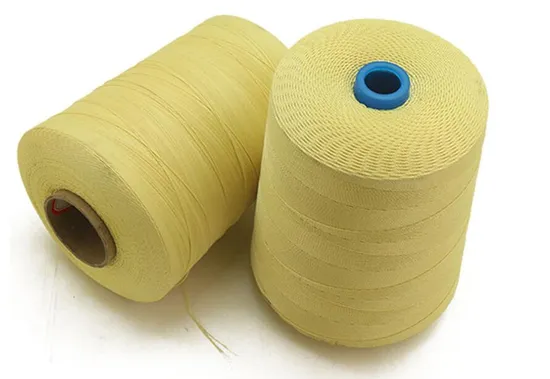

What is kevlar twisted yarn?
Kevlar twisted yarn has extremely high tensile strength, exceeding 28 grams per denier, which is 5-6 times that of high-quality steel, with a modulus 2-3 times that of steel or fiberglass, toughness twice that of steel, and weight only 1/5 of steel. The strength and toughness of aramid 1414 also make it extremely difficult to cut and process, requiring expensive specialized tools.
Aramid 1414 has a wide range of continuous use temperatures, allowing for long-term normal operation within the range of -196 ºC to 330 ºC. The shrinkage rate at 150 ºC is 0, and it does not decompose or melt at high temperatures of 560 ºC. Its heat resistance is superior to that of aramid 1313, and it has good insulation and corrosion resistance, with a long life cycle, earning it the reputation of "synthetic steel wire".
Mechanical properties of Kevlar twisted yarn
The strength is 3.6Gpa, the elongation modulus is 131Gpa, and the elongation at break is 2.8% -3.5%. It has extremely high strength, with a weight to weight ratio of 5-6 times that of steel wire, a modulus of 2-3 times that of steel wire or fiberglass, and 7 times that of high-strength nylon. It is recognized as one of the world's sewing threads.
Thermal properties of Kevlar twisted yarn
Long term use temperature: 380 ºC
Axial thermal expansion coefficient: -2 × 10 ^ (-6)/K
Thermal conductivity: 0.048 W (m · K)
It has high stability in temperature performance, not only able to be used for a long time in the temperature range of -196 ºC to 380 ºC without significant changes or losses, but also has non solubility, non combustion (fire resistance), and will only start carbonization at 427 ºC. Even at a low temperature of -196 ºC, it will not become brittle or suffer performance losses. It can also withstand temperature resistance up to 585 ºC for short periods of contact.
The comprehensive outstanding performance of Kevlar twisted yarn
High tensile
High tensile strength function
Low elongation,
High modulus
High fracture strength
High temperature resistance
Flame resistance
Insoluble, non combustible, only carbonizing
High chemical resistance & stability
Low coefficient of thermal expansion
Low specific gravity
Electrical insulators
Due to the special performance of Kevlar yarn/kevlar thread, they are widely used in the sewing of military and firefighting shoes & clothing, sewing of fire-resistant and high-temperature resistant textiles, as well as enhancing the tensile strength of wires and cables, enhancing the skeleton or tensile strength of rubber (plastic) products, strengthening the tire, enhancing the protection of automotive hoses, sports and leisure competitive kites, large kites, and other fields.

Brand	LEVER	Application	Features
Description	1313, 1414 kevlar sewing thread	High temperature resistance anti-cut gloves; Fire suit; Aerospace industry; Racing apparel	Wear & cutting resistant; High temperature resistance; Acid and alkali corrosion resistance; Strong conductivity;
Material	Kevlar yarn
Specification	203, 303, 402
Color	Yellow (original color; Black

Specifications
Size	Diameter	Length (m/kg)	Breaking Force (N)	Long-term service temperature
400D/3 3 twist in 1	0.35mm	6750	212N	480ºC
600D/3 3 twist in 1	0.50mm	4500	260N	480ºC
800D/3 3 twist in 1	0.55mm	3375	384N	480ºC
1000D/3 3 twist in 1	0.60mm	2700	573N	480ºC
1500D/3 3 twist in 1	0.88mm	1800	820N	480ºC

Specification	Diameter	Length/roll
402	0.15mm	3000m
403	0.2mm	2250m
302	0.2mm	2500m
303	0.25mm	1550m
203	0.32mm	1150m
1000D/2	0.5mm	400m
1000D/3	0.6mm	270m
1500D/2	0.88mm	180m

Specification	Diameter(mm)	Breaking Force(kg)	Length(m/kg)
20s/2	0.26	4.17	17452
20s/3	0.35	6.26	11173
30s/2	0.18	2.47	27778
30s/3	0.22	3.85	16935
40s/2	0.12	2.08	33025
40s/3	0.17	3.13	22578

What is aramid kevlar rope?
Aramid kevlar rope is a composite high-performance rope woven from Kevlar fibers. It has extremely high strength (more than 28G/D), which is 5-6 times stronger than high-quality steel. The modulus is 2-3 times than that of steel or fiberglass, and the toughness is 2 times that of steel. And the weight is only 1/5 of the steel
The continuous use temperature range of aramid rope is extremely wide, and it can be used normally for a long time within the range of -196 ºC to 350 ºC. The shrinkage rate is 0 at a temperature of 150 ºC, and it does not decompose or melt at a high temperature of 560 ºC. And it has good insulation and corrosion resistance, with a long life cycle.
Due to the special performance of aramid ropes, they are now widely used in many fields that have special requirements for ropes, such as engineering cables, safety ropes, high-altitude operation ropes, traction ropes, aramid leisure ropes, glider ropes, transportation lifting ropes, roller conveyor ropes, fire retardant ropes, high-temperature resistant ropes, etc.
What is aramid kevalr tape?
Aramid woven tape is made of Dupont Kevlar K-29 fiber filament woven.
Long term use temperature: 380 ºC
Axial thermal expansion coefficient: -2 × 10 (-6)/K,
Thermal conductivity: 0.048 W (m · K)
It has high stability in temperature performance, not only able to be used for a long time within the temperature range of -196 ºC to 204 ºC without significant changes or losses, but also has non solubility, non combustion (fire resistance), and will only carbonize at 427 ºC, with excellent temperature resistance up to 538 ºC for short-term contact.
Application fields include various special clothing belts, waist belts, safety protection, aerospace, high-speed rail warships, fire protection, mechanical transmission lifting, and so on.
Basic information:
Raw material: 100% para-aramid (poly aramid)
Specification: 0.5-20mm
Structure: 4 strands; 8 strands; 12 strands; 16 strands; 24 strands; 48 strands;
Color: Yellow (original color); black; red; orange; blue; green
Packing: 100m; 250m; 500m; 1000m (customized)
Technical features:
High temperature resistance
High pressure resistance
Abrasion resistance
Anti-static
Chemical corrosion resistance
High mechanical properties
Heat resistant
High toughness
Product features:
Adopt high quality raw material, which from USA, Tapran, Yizheng, etc
Adopt unique production process, twisting and dense weaving technique to make durable, high strength and high abrasion resistance rope
Clean surface, neat structure and free of burrs
Technical parameters for kevlar tape/webbing

Size (WxT)	Color	Kevlar Yarn	Technics
5x0.5mm	Black	200D;400D;1000D;1500D	Latitude & longitude structure
10x1mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
15x1mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
20x1mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
25x1mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
25x2mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
30x1.5mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
40x2mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
50x2mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
60x2mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
50x3mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
75x2mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
50x4mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
100x4mm	Yellow	200D;400D;1000D;1500D	Latitude & longitude structure
Pls contact us for more customized sizes

Other parameters for round kevlar rope

Size	Density (Ktex)	Breaking force (dan)	Elongation	Carbonization temperature
10x2mm	14	700	3.5%	480ºC
10x4mm	28	1400	3.5%	480ºC
25x2mm	34	1750	3.5%	480ºC
25x4mm	68	3500	3.5%	480ºC
38x2mm	51	2660	3.5%	480ºC
38x4mm	102	5320	3.5%	480ºC
50x2mm	68	3500	3.5%	480ºC
50x4mm	136	7000	3.5%	480ºC
75x2mm	100	5250	3.5%	480ºC
75x4mm	200	10500	3.5%	480ºC
100x2mm	135	7000	3.5%	480ºC
100x4mm	270	14000	3.5%	480ºC

Kevlar Strape/Tape
No.	Size (Width x Thickness)	Min. Order Quantity	Remark
1	6x1mm	50m
2	8x1mm	50m
3	10x1mm	50m
4	20x1mm	50m
5	20x2mm	50m
6	20x3mm	50m
7	20x4mm	50m
8	25x1mm	50m
9	25x2mm	50m
10	25x3mm	50m
11	25x4mm	50m
12	30x1mm	50m
13	30x3mm	50m
14	38x1mm	50m
15	38x1.8mm	50m
16	38x2mm	50m
17	50x1mm	50m
18	50x1mm	50m
19	50x1mm	50m
20	50x1mm	50m
21	50x2mm	50m
22	50x3mm	50m
23	50x4mm	50m
24	75x3mm	50m
25	75x4mm	50m
26	80x1mm	50m
27	80x3mm	50m
28	80x4mm	50m
29	100x3mm	50m
Kevlar Rope (Flat type)
No.	Size (Width x Thickness)	Min. Order Quantity	Remark
1	8x3mm	250m
2	8x3.5mm	250m
3	8x4mm	250m
4	8x5mm	250m
5	8x6mm	250m
6	10x2mm	250m
7	10x3mm	250m
8	10x3.5mm	250m
9	10x4mm	250m
10	10x5mm	250m
11	10x6mm	250m
12	12x1.5mm	250m
13	12x2mm	250m
14	12x3mm	250m
15	12x3.5mm	250m
16	12x4mm	250m
17	12x5mm	250m
Kevlar Rope (Square type)
No.	Size (Width x Thickness)	Min. Order Quantity	Remark
1	3x3mm	500m
2	4x4mm	300m
3	5x5mm	300m
4	5.5x5.5mm	250m
5	6x6mm	250m
6	7x7mm	250m
7	8x8mm	200m
8	10x10mm	100m
9	12x12mm	100
Kelvar Rope (Round Type)
No.	Diameter	Min. Order Quantity	Remark
1	3-25mm	100m
Kelvar Sleeves
No.	Diameter	Min. Order Quantity	Remark
1	3-100mm	100m

Not all specifications listed here, pls contact us for more specifications
