High-Resolution Seamless Joint Inkjet Printing Solution

Product Description

High resolution Industrial Continuous Inkjet Printer
Product Features
1. The print heads
A) Using ink jet TIJ2.5 generation technology, a single print nozzle print height is 12.7 mm.
B) A maintenance free disposable, print heads, long life print heads can print one Litre of ink.
2. The resolution and speed
A) High resolution printing for bar code, 300* 300dpi to 600*600dpi.
B) Can realize high-speed printing, the printing speed is from 30 meters/minute to 304 meters per minute.
3. Design
A) Computer as control center, control center and the system using gigabit Ethernet connection mode, each system controller can control 1 to 4 print heads.
B) A control center can be 6 systems control/monitoring connected, each print heads can print different content, or implement 12 inches (304.8 mm) wide printing.

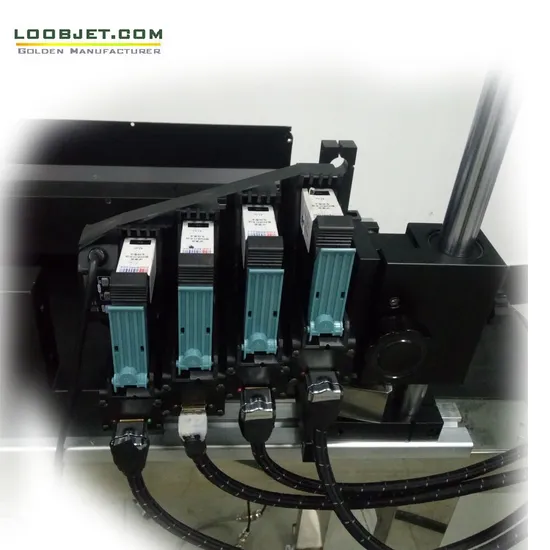

C) Realize seamless splicing between multiple print heads, software can be installed stitching accuracy.
D) Automatic compensation system to guarantees the highest bar code printing grade.
E) Software has the function of preventing printed code, automatically identify print database, the software page shows printed bar code with different color to distinguish that is properly linked the data.
F) System integration is high, easy installation and maintenance.
G) Can be chosen the ink system, large capacity for ink (1 liter) to reduces the users intervention, decrease the cost of users at the same time, achieve 24-hour non-stop production.
4. Print content
A) Editing interface content,no quantity limit, fully meet customer demand.
B) Can print the static text, images, bar code, the dynamic codes, text, counter, pictures, time, date, date of real time.
C) Can print the bar code as many as 180 species, including one and two dimensional bar code: EAN128, Code39, Code93, Code128, Data Matrix, Maxi Code, QR Code, and so on.
D) System to support a variety of external database (TXT, excel, supervision code data, etc.).
5. The ink medium
A) Available water-based ink certification ink;
B) Can print a variety of media, including all kinds of suction type medium, coated paper, offset paper, PVC, coated carton, light oil carton, etc.

Technology details

1.Size of the controller	100mm * 100mm * 50 mm
2.The largest print Height	A single Controller is maximum of 50.8 mm(with four print heads) If six joint maximum is 304.8 mm(with 24 pics print heads)
3.The total weight	6 kgs
4.Interface	A serial port, Ethernet front-end ports, magic eye, encoder interface, print nozzle interface.
5.Spray printing precision and the corresponding print speed	60 m/min (600 x 600 dpi) 90 m/min(600 x 300 dpi) 120 m/min (600 x 200 dpi) 150 m/min (600 x 150 dpi)
6.Ink system	Ink cartridge,ink bag, ink tank system
7.The sensor	Support multiple external sensors (NPN, contact type)
8.Synchronizer	300 ppi synchronizer
9.The power supply requirements	Single phase, 110-120 vac 50/60 hz 3.2 A Single phase, 220-240 vac 50/60 hz 1.6 A
10.The working environment	Temperature 0 ºC to 40 ºC, humidity 10% ~ 80%
11.Storage environment	Temperature 15 ºC ~ 85 ºC, humidity 5% ~ 95%, no condensation environment.
12.Software technology parameters	X Windows, Windows 7, Windows 8 (pro) opertating system
13.Static printing support	Dynamic text, counters, date, dynamic bar code, static text, pictures, (dynamic bitmap, need to customize)
14.Barcode printing support	1d: EAN128, Code25, Code39, Code93, Code128, GS1Databar various one dimensional code; 2 d: PDF417, Data Matrix, Maxi Code, the QR Code and QR Code.
