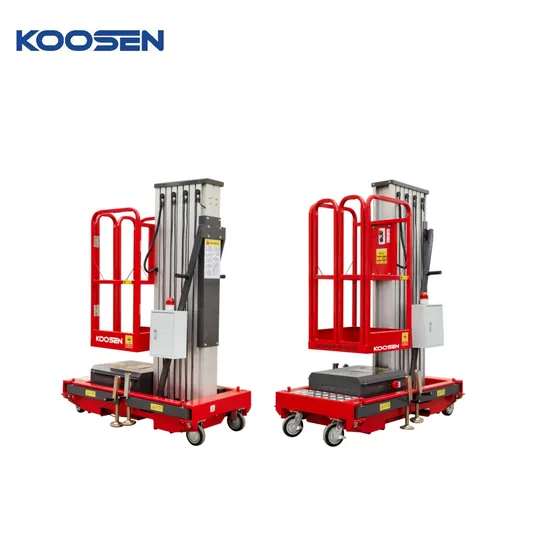

New Tech Single Masts Aluminum Alloy Aerial Lifting Platform Vertical Platform Lift

Product Description

Product Description
AWP12-1000/AWP10-1000/AWP8-1000
Main spec.
Working height:12.00m,10m and 8.00m
S.W.L:150kg
Important features
self-leveling outriggers with sensor system, LED display, safe and reliable
Cylinder holding valve
Trunk loading device, convenient for loading alone
AC/DC Power system optional

Product Parameters

Size
Model	GTWY11-1000	GTWY10-1000	GTWY9-1000	GTWY8-1000	GTWY6-1000	GTWY5-1000
Working height	12.70m	12.20m	11.20m	10.00m	8.20m	6.70m
Platform Floor Height	10.70m	10.40m	9.20m	8.00m	6.20m	4.70m
Overall Length(Stowed)	1.50m	1.26m	1.26m	1.24m	1.24m	1.35m
Overall Width	0.81m	0.81m	0.81m	0.81m	0.81m	0.81m
Overall Height(Stowed)	2.30m	1.97m	1.97m	1.97m	1.97m	1.97m
Outrigger Footprint(L/W)	2.20m/2.20m	1.80m/1.80m	1.60m/1.60m	1.60m/1.60m	1.60m/1.60m	1.60m/1.60m
Platform Size(Length/Wide)	0.67m×0.66m	0.67m×0.66m	0.67m×0.66m	0.67m×0.66m	0.67m×0.66m	0.67m×0.66m
Ground Clearance	0.05m	0.05m	0.05m	0.05m	0.05m	0.05m
Performance
Model	GTWY11-1000	GTWY10-1000	GTWY9-1000	GTWY8-1000	GTWY6-1000	GTWY5-1000
S.W.L	120kg	136kg	136kg	150kg	150kg	150kg
Max. Occupants	1	1	1	1	1	1
Up/don speed	44/36sec	36/30sec	38/34sec	38/34sec	38/34sec	38/34sec
Tyres(Back Wheels)	8in	8in	8in	8in	8in	8in
Tyres(Front Wheels)	5in	5in	5in	5in	5in	5in
Power
Model	GTWY11-1000	GTWY10-1000	GTWY9-1000	GTWY8-1000	GTWY6-1000	GTWY5-1000
Lifting Motor(AC)	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW	110-230VAC/1.5kW
Lifting Motor(DC)	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW	12VDC/1.5kW
Batteries	12V/85Ah	12V/85Ah	12V/85Ah	12V/85Ah	12V/85Ah	12V/85Ah
Integrated Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A
Weight
Model	GTWY11-1000	GTWY10-1000	GTWY9-1000	GTWY8-1000	GTWY6-1000	GTWY6-1000
Weight(AC)	455kg	385kg	365kg	335kg	305kg	275kg
Weight(DC)	477kg	407kg	387kg	357kg	327kg	297kg

Detailed Photos

Recommand

Exhibition
Packaging & Shipping
FAQ
1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths.
5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L.
6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
7.Q:Are you factory?
Yes,we have our own factory.
8: Can I visit your company?
Of course at anytime.
9, Do you support customization?
Yes.We not only provide standard products,but also support customized products.
