Boring Drilling CNC Lathe Machining Center

Product Description

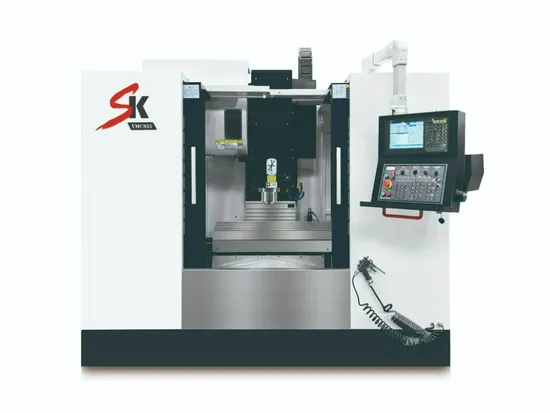

1.CNC Machine Center CNC Vertical Machining Center Product Description
1.1 DESCRIPTION
The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit.
The heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models.
The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.

1.2 FEATURE
1.The XYZ three-axis adopts heavy-duty roller linear guide rail, which has the advantages of good dynamic characteristics, large load-carrying capacity, high running precision, no creeping at low speed, and small frictional resistance.
2.X/Y/Z axis feed mechanism: AC servo motor + coupling + high-precision ball screw (pre-tightening treatment is adopted between the ball screw and the nut, the whole stroke
is inspected, and the clearance is eliminated structure.
3.The Z-axis is driven by a high-power servo motor with brake (without mechanical balance device) to ensure that the machine tool has a high dynamic response speed, and is equipped with a Sudden drop function (that is, Z-direction anti-fall and rapid lifting when power is off, preventing damage to tools or workpieces).


1.3 OUR ADVANTAGES
Suitable for precision parts processing such as aerospace, automobile manufacturing, mold manufacturing, hardware processing, etc.
01 Workbench,Ultrasonic quenching, precision grinding.
02 Linear rail
Taiwan HIWIN/PIM linear rail is used, which has high precision, large load-bearing capacity, strong stability, long service life, and is suitable for high-precision processing requirements.
03 Tool magazine
Disc-type tool magazine, which can rotate without noise and change tools quickly and accurately.
04 Advanced control system
Mitsubishi, Fanuc, Siemens, etc. can be selected according to customer requirements.
1.4 PARAMETER

Specification	Unit	VMC850	VMC855	VMC1160		VMC1370	VMC1580
X/Y/Z axis	mm	800/500/600	800/550/550	1100x600x600		1300x700x700	1500/800/700
Distance from spindle nose to workbench	mm	100-600	120-670	150-750		100-800	170-870
The distance from the spindle centre to the column railway	mm	550	590	660		795	783
Track form		XYZ: Linear guide	XYZ: Linear guide	XYZ: Linear guide		XYZ: Linear guide	XYZ: Linear guide
Workbench size(L*W)	mm	1000x500	1000x550	1200x600		1400x700	1700x800
The max.load capacity	kg	500	500	800		1100	1500
Slot	No/mm	5-18×75	5-18×90	5-18×100		5-18×100	5-18×125
Spindle taper hole		BT40	BT40	BT40		BT40	BT50
Spindle speed	rpm	8000	8000	8000		8000	6000
Spindle drive mode		Belt	Belt	Belt		Belt	Belt
X/Y/Z axis rapid feeds	m/min	36/36/24	36/36/24	32/32/24		30/30/24	20x20x18
Max.cutting feed	mm/min	10000	10000	10000		10000	10000
Tool change method		Arm	Arm	Arm		Arm	Arm
Tool Capacity	tools	16	24	24		24	24
Maximum tool weight	kg	8	8	8		8/15	8/15
Fastest tool change time(T-T)	sec	2.5	2.5	2.5		2.5	4
Spindle motor	kw	7.5/11	7.5/11	11/15		11/15	15/18.5
Positioning accuracy	mm	±0.006	±0.006	±0.006		±0.007	±0.007
Repositioning accuracy	mm	±0.004	±0.004	±0.004		±0.005	±0.005
L*W*H	mm	2500x2400x2600	2600x2400x2550	3200x2630x2920		3730x2435x3020	3924x2660x3020
Weight	kg	5000	5000	7000		9500	11000

1.5 STANDARD ACCESSORIES

1	24 disc tool magazines	10	Spindle output water
2	X,Y,Z axis ball screw: HIWIN/PMI	11	X,Y,Z axis bearing: NSK
3	X,Y,Z liner guideway:HIWIN/PMI	12	Portable chip blowing air gun
4	Workpiece Cooling System	13	Network transmission and CF card function
5	Fully enclosed protective cover	14	Automatic lubrication system
6	Spindle blowing device	15	Working light
7	Workpiece Cooling System	16	Tri-color warning light
8	cleaning air gun	17	Foundation screws and pads
9	Iron chipping disc and chip storage box	18	Tools and Toolboxes

After Sales Service
2. SERVICE
2.1TRAINING AND INSTALLATION
2.2 AFTER SALES 1. From the BL date, the manufacturer will implement the "three guarantees" service for the product for one year (if the user causes damage due to his own reasons, an appropriate cost fee will be charged)
2. When the machine tool breaks down, the manufacturer can accurately judge the cause of the failure and deal with it immediately after receiving the feedback information from the user; if the cause cannot be determined at that time, a reply will be given within 24hours
2.3 Package
FACTORY WORKSHOP
3.FACTORY WORKSHOP
Company Profile
4.Company strength
4.1 General situation
Anhui Gaochuan Sikai CNC Equipment Manufacturing Co, Ltd. (formerly Nanjing Sikai)/NanJing Newsiv Equipment Co.,Ltd was founded in 1993 and relocated to Ma'anshan, Anhui In 2021.
It is a high-tech enterprise specializing in the design and manufacturing of CNC machine tools. The company's main products have compteteiy independent intellectual property rights, and multiple series of products have obtained Jiangsu Province High tech Product Certificates.
The enterprise has been recognized as a high-tech enterprise. Since joining China Transmission Group in 2010, the company has been striving for excellence and self-improvement On the one hand, with the strong support of the group, we cooperate with well-known foreign machine tools and Taiwanese enterprises, aiming for the quality and performance of international mid ...
4.2 Participate in an exhibition
Certifications
4.3 certifications
FAQ

FAQ
1	Is your company a factory or trading company ? We are factory .It is located in JiangSu Province.
2	Can we visit your factory before order? Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
3	What's the MOQ ? One set only.
4	Do you have professional engineers ? Yes.we have professional engineers and designers. We can provide OEM services.
5	Do you have CE certificate? Yes , we have CE certification, machine quality is guaranteed.
6	What is your payment terms ? 30% T/T in advance , 70% T/T before shipment, Meanwhile it can be discussed according to your situation.
7	What is your delivery time ? Our fastest delivery time for 1~5 sets will be within one month for standard model. Special model will depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
8	How is the warranty? We will supply standard ports and accessories with our machine . Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
