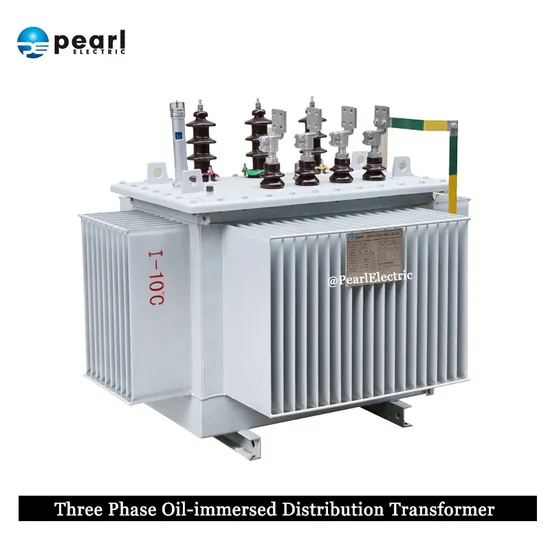

Three Phase 800KVA 1000KVA 1500KVA 2MVA 2.5MVA Oil-immersed Distribution Transformer

Product Description

Three Phase 800KVA 1000KVA 1500KVA 2MVA 2.5MVA Oil-immersed Distribution Transformer Product Description An oil-immersed distribution transformer, also known as an oil-filled transformer, is a type of electrical transformer that uses oil as both an insulating and cooling medium. These transformers are widely used in electrical power distribution and transmission networks due to their efficiency and reliability. Pearl Electric, a professional and reliable manufacturer of oil immersed distribution transformers, designs and produces 500KVA~2500KVA oil immersed distribution transformers.
According to the customer's project requirements, we provide customized transformer services.
According to the different insulation materials, Pearl Electric can provide mineral oil distribution transformers without PCB, environmentally friendly FR3 vegetable oil distribution transformers, and NINAS oil distribution transformers.
According to the different requirements of iron core materials, Pearl Electric can provide oil-immersed transformers with silicon steel sheet iron cores and oil immersed transformers with amorphous alloy iron cores. Among them, amorphous alloy oil immersed transformers are ultra-high efficiency transformers with losses only 20-30% of silicon steel sheet transformers, which are very suitable for projects with high energy efficiency requirements.

Model	Rated Capacity	Rated H.V.	Rated L.V.	Insulation Oil	Core Material	Winding Material
PEO-S-*KVA/HV/LV	500KVA 800KVA 1000KVA 1500KVA 2000KVA 2500KVA	6KV 10KV 11KV 13.2KV 13.8KV 15KV 22KV	230V 400V 415V 480V 660V	Mineral Oil without PCB FR3 Vegetable Oil NINAS Oil	Silicon Steel Amorphous Alloy	Copper Aluminum

Certifications Certifications and Test Reports
1. ISO 9001:2015 Quality Management System Certificate
2. ISO 14001:2015 Environmental Management System Certificate
3. ISO 45001: 2018 Occupational Health and Safety Management System Certificate
4. CE Certifications for dry type transformer and oil-immersed power transformer
5. KEMA Test Report for Cast Resin Dry Type Transformer and Oil-filled Distribution transformer
6. DEKRA TYTE TEST CERTIFICATES for Prefabricated Substation Company Profile PEARL ELECTRIC CO., LTD. Pearl Electric, located in Guangzhou, China, was founded in 1958 and is an outstanding power equipment supplier in the transmission and distribution industry. With a land area of 100000 square meters, over 600 employees, and an annual turnover of over USD 142 million, we currently have over 200000 transformers in operation, which have been sold to Southeast Asia, Central Asia, Africa, Europe, North America and other regions. Pearl Electric is devoted to providing safe, highly efficient and intelligent power transformation and distribution solution, focusing on R&D, manufacturing, sales and service as below: ★ Cast Resin Dry Type Transformer Up to 30MVA, 66kV ★ Oil-immersed Power Transformer Up to 150MVA, 220kV ★ Pad-mounted Transformer Up to 10MVA, 40.5Kv ★ Compact Substation Transformer Up to 10MVA, 40.5kV Reactors and other power transformation/transmission equipment. FAQ:
1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Guangzhou City, Guangdong Province.
2.Q: Do you have any Certificate?
A: Yes. Our transformer has awarded CE, UL, KEMA certificate. If you need any other Certificate, we can help you to apply it.
3.Q: How can I pay you?
A: Pay by T/T and L/C is acceptable.
4.Q: What about the production?
A: In general, it take 4~6weeks and it depend on the different style.
5. Q:How contact us to get quick inquiry ? Follow us in our company website.
