China Used Kubota 688 988 Mini Combine Harvester with High Productivity

Product Description

Product Description

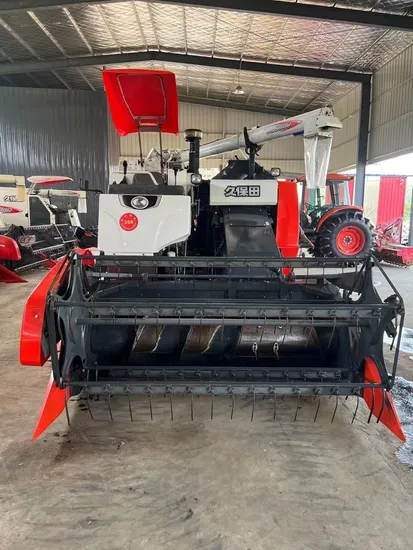

Kubota 4LZ-4 (PRO988Q) full-feed crawler harvester product features Suitable for professionals who aim for high profits, this crawler-type grain combine harvester combines high profits, fast operation and easy maintenance. Rotating and high-speed grain unloading: The 3.8m long grain unloading drum can be rotated 255°, which is very convenient for loading grain in trucks or discharging grain across field ridges. The large diameter design enables high-speed grain discharge and saves grain discharge time.
1. Kubota's high-power engine: Kubota's 72.9kW high-power diesel engine can achieve high-efficiency harvesting even in high-yielding rice and wet fields, with a maximum walking speed of 2.1m/s. In addition, the large-capacity HST transmission is adopted to further achieve flexible operation.
2. 2.3m wide harvesting: The cutting width is 2.3m. At the same walking speed, the feeding amount is larger, effectively ensuring high-efficiency harvesting.
3.High-precision threshing section with low threshing loss: The longitudinally arranged Φ620×2210mm large-diameter long threshing drum makes threshing more complete, with less threshing loss and low impurity content.
4.Large-capacity granary: The capacity of the granary is 1400L. Large fields can also be operated continuously for a long time, reducing the number of unloading grains.
5.Large-capacity fuel tank: The 140L large-capacity fuel tank can reduce the number of refuelings, extend the operating time, and increase the operating area.

Model	4LZ-4(PRO988Q)
Structure type	Crawler self-propelled full feed
Length (mm) (transportation status/working status)	5570/5730
Width (mm) (transport state/working state)	2540/2540
Height (mm) (transport state/working state)	2710/2940
Structural mass (kg)	3670
engine model	V3800-DI-T-ET02
Structure type	Vertical water-cooled 4-cylinder turbo diesel engine
Total displacement (L)	3.769
Calibration power/calibration speed [(kW)/(r/min)]	72.9/2600
fuel, Fuel tank capacity (L)	140L diesel
Starting method	Electric
Battery Specifications (V+AH)	12*100
Track width (mm) X ground length (mm)	500*1890
Track gauge (mm)	1350
Track ground pressure (kPa)	20.2
Minimum ground clearance (mm)	290
Transmission type	Mechanical transmission + hydraulic stepless transmission [HST]
Gear shift	3F+3R.

Detailed Photos
---------------------------------------------------------------------------------------------------------------------------------
FAQ
(1). We can provide new and used tractors of any brand or model you need.
(2). MOQ
Mini tractor: 2 units
middle tractor(25-40hp): 1 unit
Above 50hp: 1 unit
(3). Spare Parts
Free toolbox and easy damaged parts.
(4). Shippment
We can help you arrange shippment.
(5). Delivery Time
Usually 25 days. In peak season,30-40 days
(6). Warranty Time
Complete service system, 12 months since arrival of destination port
(7). Payment Terms
We accept 30%T/T in advance, and 70% T/T before delivery
(8). Tractor Options
Can be equipped with ROPS, Canopy, Cabin, AC Cabin, Air Brakes, Hydraulic Valve Out, Paddy Tire or as per your requirements.
(9). Tractor Logo
We have our own logo. And we also can put your logo for free.
(10). Package and Loading
1.complete tractor package: 2 units/20GP, 4 units/40HQ
2.Iron Frame Package: 8 units/20GP, 16 units/40HQ
(11). Tractor Implements
Rotary tiller, disc plow, furrow plow, cultivator, front end Loader, backhoe, Mower, Trailer, Snow Blower or as per your
requirements.
(12). Part supply
Complete Parts Workshop, and can supply all parts
