Weiss Em35 Electronic Milling and Drilling Machine with CNC Function

Product Description

Recommended Products
EM18 VM25L VM32L

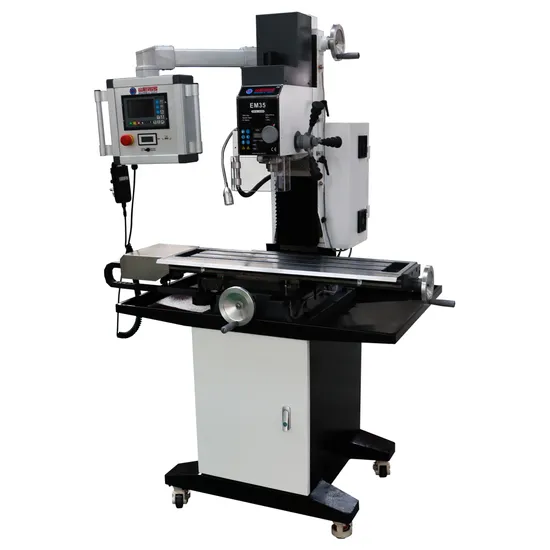

WEISS EM35 Semi- auto electric milling and drilling machine
All axes with ball screws
Servo drive on all axes (X Y and Z axis)Manual central lubrication for all guide ways
Swiveling control panel
DDCS V3.1 34 axis departure controller
5 inches inch TFT screen, resolution: 480x272.17 operation keys
The 17-key can complete the common off-control operation, and support the FANUC compatibility of the G instruction set with strong universality
Support U disk to read G instructions, G instruction file size is not required;
Support standard MPG;
Support the single-axis manual movement and continuous operation of the single-axis of the panel
The hand wheel and the extension keyboard can control and operate the controller
Especially quiet running
Stable dovetail guide, precision ground and scraped with adjustable wedges
Manual spindle fine feed
Drilling and milling head can be swiveled by± 90°
Super heavy-duty stand with multi-function wheel, car be adjust height and fix as machine pad(optional)
Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories
WEISS MODEL	EM35
Item No.	10203835
Max. drilling capacity	Ø32 mm	DDCS V3.1 3/4 axis departure controller
Max. end milling capacity	Ø20 mm	Swivelling control panel
Max. face milling capacity	Ø76mm	Electronic handwheel
Table size	840x210 mm	3 Axis ball screws and servo motor
Cross travel	200 mm	Drill chuck 1-16mm
Longitudinal travel	580 mm	Drill chuck arbor
Vertical travel	350 mm	Drawbar
Taper of spindle bore	MT3/ISO30 or R8	Toolbox &tools
Spindle stroke	100 mm
T-slot	3x14 mm
Step of spindle speeds	Variable
Range of spindle speeds	100-2500 rpm
X/Y/Z axis feed motor torque	6/8/8 N.m
X/Y/Z axis Max. feed speed	4/4/4 m/min
Heads tilt left & right	±90°
Distance from spindle to column	210 mm
Distance from spindle nose to table	450 mm
Motor	1500 W

Details


Factory and Delivery
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc. 3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.
