Gypsum CaCO3 Kaolin Barite Calcite Dolomite Powder Production Used Superfine Grinding Machine

Product Description

ONE STOP SERVICE
Providing complete solutions of industrial powder equipment------Clirik Product Description

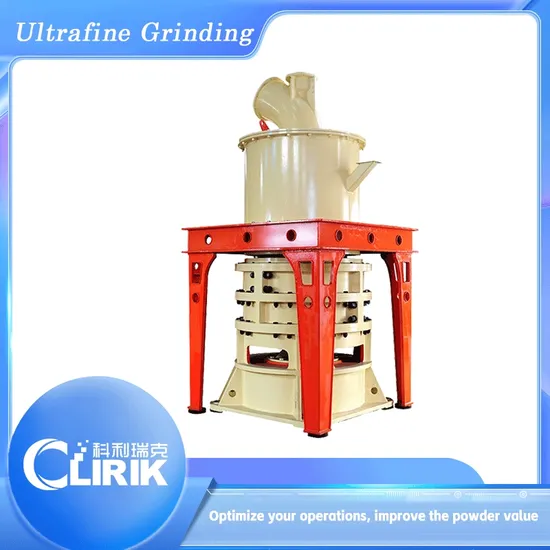

HGM Ultrafine Mill is a device that breaks solid materials into powder by grinding, Such comminution is an important unit operation
in many processes. It is usually used in Metallurgy, building materials, chemical and mine industries.

HGM Ultrafine Mill is suitable for the super fine grinding of all kinds of crisp materials whose Moh's hardness is below 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc,fluorite, white mud, mica, refractory material, glass, total about 1000 kinds of materials.
Main Specification

Model	HGM80	HGM90L	HGM100L/100P	HGM125L	HGM1680L
Ring Diameter(mm)	800	900	1000	1250	1680
Ring Number(layer)	3	3	4	4	4
Roller Number(piece)	18-21	24-29	28-36	30-40	30-44
Main Shaft Speed(r.p.m)	230-240	200-220	180-200	135-155	120-130
Input Size(mm)	<=20	<=20	<=20	<=20	<=20
Finished Size(um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	74-5 (150-2500)	74-5 (150-2500)
Capacity(t/h)	0.5-4.5	0.5-6.5	1-9	2.8-20	5-45
Overall Dimension(L*W*H,m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	14*9*10.25	26.3*7.5*11.9

Our Advantages
Advantages of HGM Ultrafine Mill
1.Adjustable particle size:325-3000mesh.

2.High utilization rate of Wear material:
2-5 years

3.High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.

4.The yield is 40% higher than other mills.

5.Closed system, so it is the green and ideal equipment for environment protection.

Certification

Scope&Application
Components&workflow
How does the machine work?
1.Large pieces of material are crushed to the required size by the jaw crusher. 2.Crushed material is sent to the storage hopper by elevator. 3.Vibrating feeder send material to the main grinding chamber evenly and continuously for grinding.
4.The ground powder is taken away by the airflow of the fan and classified by the analyzer. 5.The finished product that meets the fineness is collected by the airflow through the pipe, then into the large selection air collecting pipe.
6.The material is discharged through the powder outlet pipe to become the finished powder.
Recommand products
Jaw crusher Packaging machine YGM&MTM series Raymond mill

Packing & Shipping:

Packaging: Conventional Packaging suitable for long distance transportation.
Shipping: 10-30 working days after recieving the deposit of the devices.
Company Profile
Shanghai Clirik Machinery Co. Ltd
-----Located in Shanghai,China

Clirik Factory--Grinding Mill Manufacturing Base

Sales team

Customer visit

Customer Case on the World

FAQ
1. who are we?
Shanghai Clirik based in Shanghai, China, start from 2010,sell to Mid East(30.00%),Africa(20.00%),Southeast Asia(19.00%),South Asia(15.00%),North America(3.00%),South America(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),Eastern Europe(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grinding Mill, Crusher and other stone powder production needed machines
4. why should you buy from us not from other suppliers?
1. CE, ISO9001
2. factory sell directly
3. 30 years experience, professional
4. Sales market all over the world
5. good after sales service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDU,Express Delivery;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,French

If you are interested in our VERTICAL ROLLER MILL welcome to leave us your inquiry
↓↓↓ We would let our engineer send you more details, thanks ↓↓↓
