Hydraulic Piston Oil Seal Maker Seal Making CNC Machine for Making Rubber Seal
Basic Info.
Model NO.
CS500
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Seal Macking CNC Lathe Machine
Structure
Slant Bed CNC Lathe
Max. Turning Seal Diameter
500mm
CNC Controller
Siemens 828d
Color
OEM
Chuck
Manual Chuck/Hydraulic Chuck
Key Words
Seal Maker, CNC Turning Machine for Seal
Workpiece
Seal Raw Materials
Delivery Time
2 Months
Warranty Time
12 Months
Loading Port
Shanghai Port, China
Function
CNC Lathe for Seal Making
Voltage
380V
Software
Provided
Seal Cutting Tools
Standard Accessories
Transport Package
Wooden Case
Specification
500mm seal
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
3500.000kg
Product Description

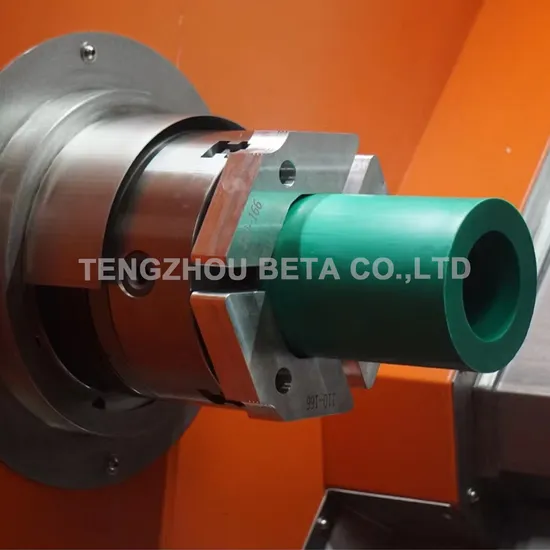

Hydraulic Piston Oil Seal Making CNC Machine For Making Rubber Seal| Specification | CS500 |
| Max. Turning diameter over bed | 520 mm |
| Max. Seal Turning diameter | 500 mm |
| Spindle | A2-5 |
| Spindle bore diameter | 56 mm |
| Max. spindle speed | 5000 r/min |
| Chuck size | 6 inch chuck |
| X-axis rapid move speed | 24 m/min |
| Z-axis rapid move speed | 24 m/min |
| X-axis travel | 260 mm |
| Z-axis travel | 450 mm |
| X-axis motor (with brake) | Siemens 2.29 kw / 11Nm |
| Z-axis motor | Siemens 2.29 kw / 11Nm |
| X-axis guide | SKF 30 |
| Z-axis guide | SKF 35 |
| Turret type | Horizontal 8 station VDI turret |
| X/Z axis ball leadscrew | Taiwan HIWIN SKF |
| Leadscrew bearing | Germany FAG |
| Spindle bearing | NSK |
| Electrical components | Schneider |
| Main motor power | 7.5 kw |
| CNC Controller | Siemens 828D controller |
| Motor power of suction machine | 5.5 kw |
| Machine weight | 2800 kg |
| Overall size of CNC lathe | 2750*1780*1920 mm |
| Overall size of Suction machine | 900*900*2000 mm |
| Repeated positioning accuracy X-axis/Z-axis | 0.004mm/0.004mm |
