Heavy Duty High Precision CNC Lathe Machine Ck61125e with 10ton Loading Capacity

Product Description

CNC Lathe CK61125E 10TON

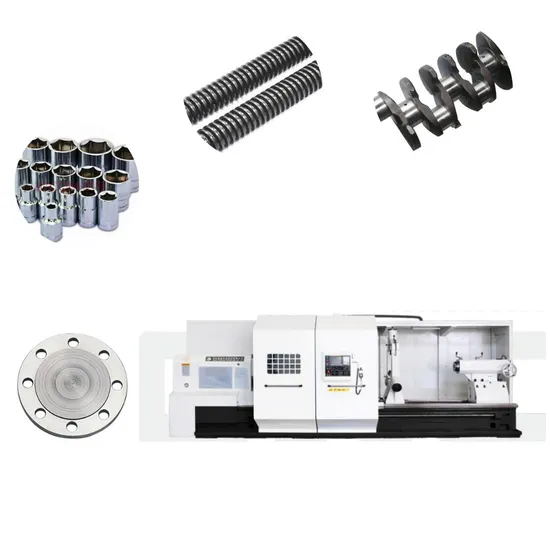

CK61125E/160E (10 series of heavy-duty CNC lathes have semi-closed-loop control function, the workpiece loading capacity is up to 10000kgs. It is suitable for machining various heavy-duty shafts. sleeves. and discs parts with complex shapes. Such as turning inner and outer cylindrical surfaces.conical surfaces, arc surfaces,end surfaces, grooving, chamfering, and threading, it is easy to program and simple to operate and is ideal for heavy-duty machining equipment.
Main structural features:
1. Bed: integral box-shaped structure,using high-standard cast iron (HT300) by one-time molding casting, and after second aging treatment, the guideway width is 970mm.
2.Headstock: The structure of the box body is strong, the pears are quenched and precision ground, with high precision, table operation, and low noise.The diameter of the spindle is large, supported by precision heavy load bearings for three-point support, and the rotation is stable, it can perform heavy cutting and finish cutting. Automatic forced circulation lubrication makes the transmission system operate flexibly and can effectively col down.it can also realize step-less speed change and constant linear speed cutting.
3. Feeding: axis-Z sliding guideway are covered with TSF soft belt, which greatly reduces the friction coefficient and improves the servo response performance, axis-X feeding is driven by AC servo motor which is directly connected with the ball screw through the flexible servo coupling, guaranteed high machining accuracy. positioning accuracy. and accuracy retention. Face motion pats are automatically lubricated by a centralized intermittent lubricating system.1000-6000MM specification are driven by an AC servo motor via a high-precision planetary reducer Feeding,the specifications above 8000MM are fed by the rack and pinion drive. The machine tool has high positioning accuracy and repeated positioning accuracy.
Specification:

Model No.
Item No.	CK61125E
Specifications
Swing over bed	1250 mm
Swing over carriage	880 mm
Max.length of workpiece	3000 4000 5000 6000 8000 10000 12000 mm
Max.turning length	2800 3800 4800 5800 7800 9800 11800 mm
Pan of guideway	970 mm
Spindle
Spindle nose	A2-15
Spindle bore	130 mm
Taper hole of spindle	metric system 140
Range of spindle speeds	5~320 r/min
No.of spindle speeds	four-speed induction
Max.weight of workipece	10 T
Chuck	four-clawed 1250 mm
Feed motion
Min.cutting power	29400 N
Raoid speeds	3/5 m/min
Max. travel	700mm
Tool post&Tailstock
Turret working position	V4
Size of turret	350x350mm
Section of toolshank	40x40 mm
Dia. of tailstock quill	220mm
Travel of tailstock quill	300 mm
Taperhole of tailstock	Mores 6
Other
Workpiece accuracy	IT7
Surface roughness	Ra1.6
Main power	30kw
Lathe mass	CK61125E/6000 less):13500 14750 16000 17250 kg
Length	CK61125E/6000 less):6520 7520 8520 9520 mm
Width/Height	2665/2680 mm
CNC System	Fanuc 0i-TF
