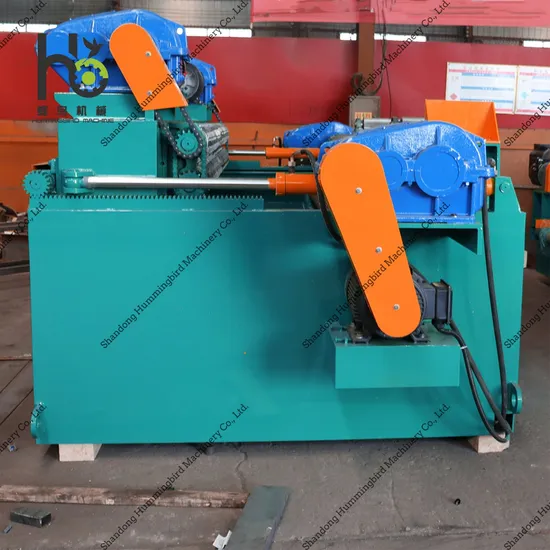

Fully Automated High-Capacity Industrial Log Debarker for Plywood Production

Product Description

This Log Debarker Machine is designed for modern wood processing, integrating efficient production and intelligent control. The core models include the 402/802 special felling debarker, equipped with an integrated bark crushing system to realize waste resource utilization; it is suitable for all kinds of soft and hard logs (such as pine, oak, etc.). Its modular design combines flexibility and durability, which can meet the diverse needs of plywood factories in tropical areas and small and medium-sized wood processing companies, significantly reducing waste processing costs by 20%, and is a full-chain upgrade solution from log pretreatment to high-value-added production.
Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!
Product Parameters

Model	HBZY-401	HBZY-402	HBZY-801	HBZY-802
Processing Length	1400mm	1400mm	2700mm	2700mm
Max.Processing Diameter	600mm	600mm	700mm	700mm
Min.Processing Diameter	80mm	80mm	50mm	50mm
Line Speed	80m/min	80m/min	60m/min	60m/min
Single Roller Power	11kw	11kw	11kw*2	11kw*2
Double Roller Power	11kw	11kw	11kw*2	11kw*2
Bark Crusher Power	--	15kw	--	15kw
Hydraulic Feeder Power	7.5kw	7.5kw	7.5kw	7.5kw
Total Power	29.5kw	44.5kw	55.5kw	70.5kw
Single Roll Diameter	150mm	150mm	150mm	150mm
Double Roll Diameter(Mace)	180mm	180mm	180mm	180mm
Overall Dimension(L*W*H)	3.8x2.2x1.4m	3.8x2.2x1.4m	5.2x2.2x2.1m	5.2x2.2x2.1m
Weight	4.2T	4.2T	9T	9T

Detail Accessories

Suitable for all softwoodand hardwood.
350 reducer, moresolid and stable.
Equipped with hydraulic stationradiator, more suitable for use in tropical areas
Chrome plated roller,more wear resistantand durable.
Press the button oncontrol system tomanually adjustment is very convenient, fast response, simple and safe operation.
402/802 Exclusive
Log debarker with bark crusher, make the waste bark to be small piece, save time, effort and space.
