OPTICAL EDGER
(square to circle grinder)
Details
The optical edger is a device to grinding the square material to circle material. This machine is widely used in material of optical glass, semiconductors, crystal, ceramic, NdFeB magnetic material.
Grinding principle is : by rotating the diamond wheel and the guide wheel , the square material grinding to circle shape.

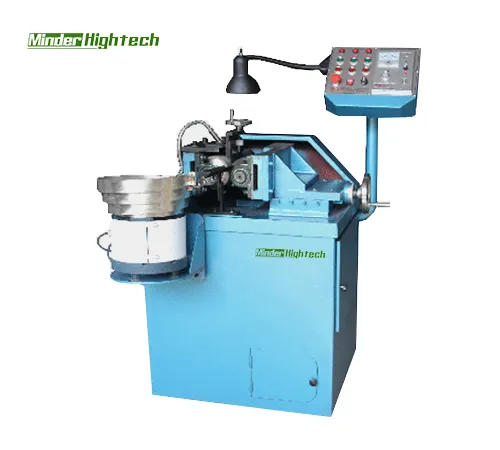

We have the semi-automatic/fully automatic type by optional the vibration bowl feeder, but optional the vibration bowl feeder has some requirement , which is the size should be between 2-6mm, and length should be less than 50mm.
For the Automatic one, one operator can manage more
MD-OE0214
Main technical parameters
Max input size(mm):square material :14*14mm, round material:φ18mm
Min output size: φ2mm
Grinding length:10-50mm
Grinding speed:600-800mm/min
Grinding accuracy(mm):un-roundness coast grinding:+-0.04; fine grinding:+-0.02.
Guide wheel transverse stroke:80mm
Guide wheel vertical stroke:25mm
Main motor:ac 380V,50Hz,1.5kw 1460 r/min
Vice motor: 1.1kw 0-1200r/min
Size: 900*800*1200mm
Weight: 550kg
MD-OE0704
Main technical parameters

Max input size(mm):	square material :4*4mm, round material:φ8mm
Min output size:	φ0.7mm
Grinding length:	10-100mm
Grinding speed:	600-1000mm/min(manual0
Grinding accuracy(mm):	un-roundness coast grinding:+-0.04; fine grinding:+-0.02.
Guide wheel transverse stroke:	50mm
Guide wheel vertical stroke:	20mm
Main motor:	ac 380V,50Hz,0.35kw 1460 r/min
Size:	900*1000*1300mm
Weight:	550kg
