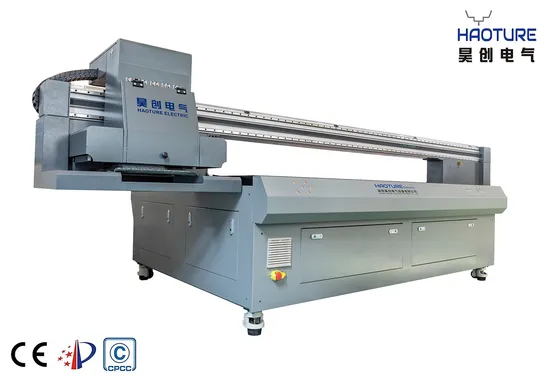

Automatic Epson 1613 Large Format UV Inkjet Flatbed Printer UV Tablet Printe Metal Printer Digital Printer Inkjet Printer UV Printer

Product Description

Product Description
HCP-1613(printheadsTX800,DX7)
Inkjet machine equipment is widely used on the surface of T-shirt, sliding door, cabinet door, sliding door, glass, plate, all kinds of signs, crystal, PVC, acrylic, metal, plastic, stone, leather and so on.

Equipment parameters
Model Type	HCD-1613
Print head type	Epson DX7 / TX800
Print head quantity	1-2pc
Printing platform	Vacuum honeycomb segmented suction platform / glass platform
Print head protection	Automatic shutdown head, automatic cleaning, flash spraying and anti blocking
print mode	Unidirectional and bidirectional
Print accuracy	720*720 dpi	720*1080 dpi	720*1440dpi
Print speed	Production model 10m^2/h
	Standard mode 8m^2/h
	HD mode 5m^2/h
Color configuration	5 colors C+M+Y+K+W
Automatic ink control box	Fully automatic integrated ink supply center, intelligent liquid level alarm, automatic mixing, white ink circulation
Color control	International ICC standard, with curves and densities, user adjustable functions
Image format	Tiff,JPEG,EPS,PDF and more
Data interface	USB3.0/2.0
Operating system	Microsoft Windows 7x64
Output size	MAX1600*1300mm
Drive system	Leisai high-precision stepper motor
Curing mode	led Water cooling curing
Medium thickness	1-200mm
Electrical requirements	AC220V±5% 50HZ≥20A
Equipment power	800W
Equipment size	2800*1850*1390mm
Equipment weight	700KG
Working environment	Temperature20-30ºC, humidity30%-70%

FAQ

1,How much is it? The price range is competitive, it" s reallAt lease we need to know your requirement ofmachine size,option. software--.Or just let us knowyour job type.Then we can offer the price with thatcondition. 2,How much ink will be consumedto print one sq.m of color? lt is depended on yourimage size. Usual cost:10-12ml ink/sq.m 3,Payment Term? T/T. 4,Dellvery term? 1.We can make an linreokce withlow price to reduce yourcustomstaxBut ifyou don't telus firsthy,we do it as normal. 2.After recehving fll paymment we nced 3-7 business daysto prepare goods. 3.AIof your goodswill be packed in carton or by phlywood.if goods are damaged during transpontation. plz informour scrvice department within 3 days after receiving them 5,Payment? 1.Contact our sales to confirm the order details andpayment term, make sure to get the proforma invoicewith TEC signed. 2.Send bank slip to our sales after you have paid yet. 3.We accept 30-50% deposit, rest pay before delivery. 6,How to choose ink? 1.Our printer use CISs(Continuous Ink Supply System) .when the ink runs out , we just need to fill ink in anddo not nced to change the ink cartridge. 2.CIS5(Continue lnk System Supplier). CSS have no chip to limit ink.(f have chip.you just canchose the ink that chip support.) 7,what can Ido berore i buy macnine? Plslet us make some samples for you toconfirm the result cof machine first. we can prepare to take photos to show you.or delivery to you(samele is free,but delivery fee is paied by your side,here you can use payple). 8,Can I put my logo on p machine? YES!YES! it means you havebig order:) 9,Whatabout the warranty oconditon? 1.One year warranty starts from shipping date.2.Exchange problem parts free By Non-human factors, not including ink system such as printhead. cap station,ink tube, ink pump, cartridgc, damper etc. 10,How Iong time it wil reacn pmy place? Sorry we don"t know excectly.bcz dlivery term conditiondifferent the time is different too.but if youcan give us more detail.we can cakulate how many days appro but all the machine can be delivered fromfactory within ? woaking days 11,Are you manufactory? YES!YES!YES! even the iphones manufactory is not APPLE,but we are the manufactory:) 12,How muchis the shipping ocost? Let us know the condition, like sea freight or airfrcight, to the port or to the door,Port of destination or door address,you know machine is a big thing.not all space we can send to.We need those condition to checkingthe cost. 13,How to support you? 1.Engineer online service by Skype, Whatsapp. etc. 2.Remote your computer to setup software and testmachine if needed by team viewer. 3.Free manual and installation video 4.Our engineer can provide door to door service if youprovide trip fee. 14,Why choose us? Bcz you searching us for a long time,Of course you have other choice, but we are more famous, we have exportour printer over 100 countries.
