6/12mm Drilling Machine Tapping Machine (SWJ-6/SWJ-12)

Product Description

COMPANY PROFILE
Hangzhou West Lake Drilling Machine Co ., Ltd . is the largest manufacturer of drilling presses , milling / drilling machines and tapping machines in China , which was established fifty years ago and has been always on the top of quality , production and varieties in the field of bench drills in China .
With brand " Westlake ", our products have been served for international market since 1956. You may find them widely used in different fields around the country and more than 60 countries / areas worldwide at present . Westlake is one of the most famous trademark among China machine and electric products for exportation , enjoying a high reputation by all customers both domestically and overseas .
Equipped with a R & D center , Metrology and test center , we have advanced product and test equipment such as CNC , Composite Machine Tool , Coordinate Measuring Machine and laser interferometer etc . Our company is experienced and strong in product design and manufacture , in constant pursue of advanced technology and continuous development of CNC . Currently we are supplying three series of Westlake drilling machines , Westlake Precision Machine and Westlake compact - sized CNC with more than one hundred types of products .
we obtained ISO9002QA and ISO9001:2000 certification as early as 1996 and 2002 respectively . Our products have obtained Germany GS and Europe CE certification as well .
Product DescriptionMain feature:
1.It use machinery friction cluth make the spindle positive and negative rotation.
2.Little impact and rotation.
3.Machinery friction cluth was equipped with over loading protection mechanism.It can protect tap.

Max.tapping capacity(cast/steel)	M6/M5, M12/M8
Distance spindle axis to column surface	127mm
Max.distance spindle nose to worktable	261/250mm
Worktable travel	40/45mm
Spindle taper	B12/B16
Spindle speeds range	forward:480-850/260-750rpm
	reverse:580-1050/320-930rpm
Dimension of worktable surface	196×196mm/230×230mm
Overall height	815/825mm
Motor	370w
N.W./G.W.	63/43kgs,72/48kg
Ship measurement	61×44×93cm

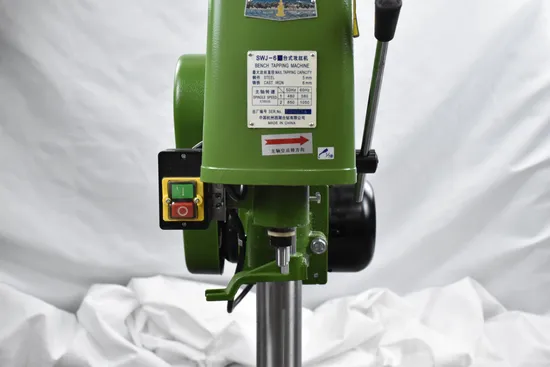

The picture:
FAQ:
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM / ODM manufacturer factory with export license. we have an experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.

2. Question : Why choose cooperate with us ?
Answer :
--Reliable Quality and All components from world leading suppliers ;
--Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Hangzhou city, Zhejiang Province, China . It takes about 1 hours from Shanghai by high speed train. Warmly welcome clients to visit us .
4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ?
Answer: Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
Welcome to visit our company website (http://wl-mach.en.made-in-china.com/)to send enquiry to us so you would get the best factory direct price,it is only for you !
