Big Bore Lathe Machine
| US$2,500.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6236
Type
Horizontal Lathe
Processing Accessory
Metal Parts
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Swing Over Bed
360mm
Swing Over Cross Slide
210mm
Swing in Gap(D×w)
480mm×100mm
Height of Center
180mm
Distance Between Centers
1015 Mm
Width of Bed
218mm
Max. Section of Cutting Tool
20mm×20mm
Total Travel of Cross Slide
230mm
Spindle Bore
52mm
Transport Package
Wooden Case with Fumigated /Plywood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
big bore lathe machine China supplier for light duty gap-bed lathe machine CQ6236 in high rigiditySpecifications
Lathe machine
1. Manufacturer
2. High performance
3. Good quality
4. Best price For sale

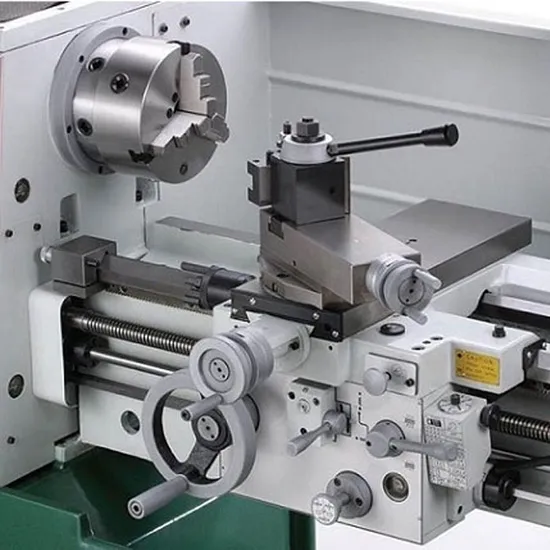

Features of lathe machine:
1. Precision ground and hardened bedways.
2. The spindle is supported with precision roller bearings.
3. Head stock gears are made of high quality steel ground and hardened.
Metal lathe machine metal lathe horizontal lathe
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
7. Whole or segregate foot stand for optional.
| Model | CQ6236 |
| Swing over bed | Φ360mm ( 14 11/64" ) |
| Swing over cross slide | Φ210mm(8 1/4") |
| Swing in gap(D×W) | 480mm×100mm |
| Height of center | 180mm(7 3/32") |
| Distance between centers | 1015 mm |
| Width of bed | 218mm(8 9/16") |
| Max. section of cutting tool | 20mm×20mm |
| Total travel of cross slide | 230mm |
| Total travel of top slide | 120mm |
| Spindle bore | Φ52mm(2 3/64") |
| Spindle nose | D5 |
| Spindle morse taper in nose,in sleeve | M.T6/MT4 |
| Spindle speeds number | 2×9 (18) |
| Spindle speeds range | 65-1800 R.P.M |
| Leadscrew diameter&thread | 24mm×4 T.P.I or pitch 6mm |
| Threads imperial pithches | 4-60 T.P.I |
| Threads metric pithches | 0.4-7mm |
| Longitudinal feeds(imperial/metric) | 0.0021"-0.0508"/0.0527mm-1.2912mm |
| Cross feeds(imperial/metric) | 0.00043"-0.0109"/0.011mm-0.276mm |
| Total travel of tailstock quill | 110mm |
| Tails stock quill | Φ52mm(2 1/64") |
| Taper tailstock quill | M.T #4 |
| Spindle drive motor | 2.0HP |
| Coolant pump motor | 4/75HP(40W) |
| Machine dimension | 1830mm×770mm×1280mm |
| Packing dimension | 1940mm×890mm×1545mm |
| N.W | 680KG |
| G.W | 790KG |
