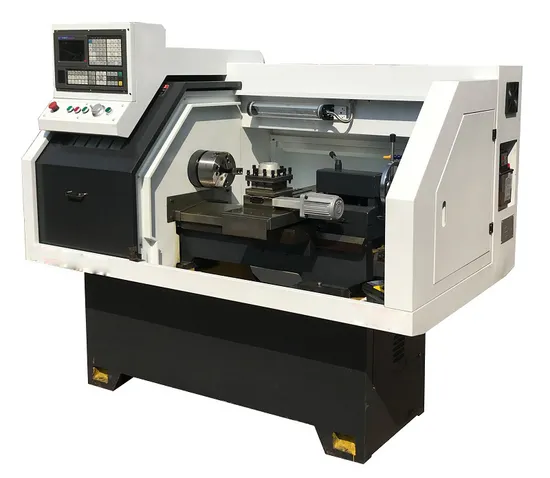

Ck6130 Small Turning Series Siemens CNC Lathe with Tool Holder

Product Description

Picture:
CNC Lathe Application
cnc horizontal lathe turning machines price used in electrical appliances, instrumentation equipment industry, automobile, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware watches and clocks, glasses, cultural and educational supplies, electrical machinery, valves, gas pipe fittings and other high-precision complex parts manufacturing , Is the hardware and mechanical processing industry the most efficient and efficient equipment.
CNC Lathe Features
1. Variable frequency stepless speed regulation
2. Servo system
3. Four-position electric tool holder

Model	CK6130	CK6132
Max swing over bed	300mm	320mm
Max swing over cross slide	100mm	90/110mm
Max processing lenght	chuck260mm/collet320mm	chuck290mm/collet400mm
X/Z axis travel	300/350mm	300/380mm
Spindle nose	A2-5	A2-5
Spindle bore	48mm	48mm
Bar capacity	41mm	41mm
Max spindle speed	2500rpm	2500rpm
Chuck size	160	160
Spindle motor	4kw	4kw
X/Z axis repeatability	0.005mm	0.005mm
X/Z axis feed motor torque	4Nm	4Nm
X/Z rapid traverse	X:8 Z:10mm/min	X:8 Z:10mm/min
Tailstock quill dia	52mm	60mm
Quill travel	90mm	100mm
Quill taper	MT4	MT4
Tool post type	4-position electric turret	4-position electric turret
Cutting tool size	16x16mm	16x16mm
Guide form	shuangshan	shuangshan
Total power capacity	7KVA	7KVA
Machine dimension	1600x1100x1650mm	1750x1150x1650mm
N weight	950kg	1200kg

CNC Lathe Details
Package & Delivery
Customer visit
This small type cnc lathe is very popular all over the world.
Our factory
Shandong Woda Heavy Machinery Co.,Ltd is a large manufacture.
