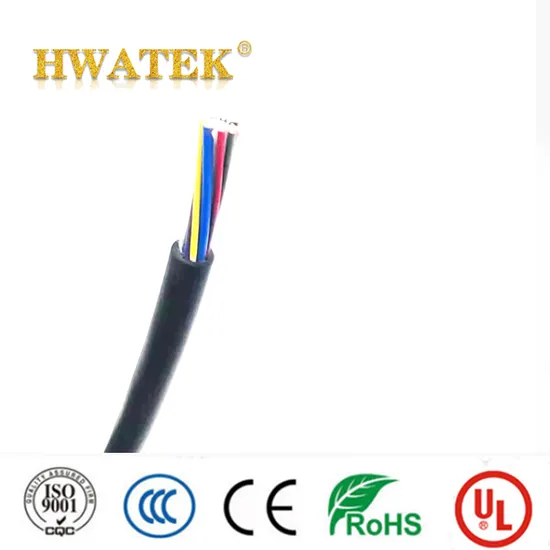

Halogen Free USB 3.0 Cable for Plug and a/V Player

Product Description

Application: Plug and A/V player Application standard: UL444,UL13,UL1581&USB3.0,IEC60754-2 Product character: High-speed transmission, Huge capacity Pass UL VW-1 and CSA FT1 vertical flame test Constructure: Stranded tinned copper conductor, PWR 28-20AWG, UTP 28-34AWG, SDP 26-34AWG Foamed PE or PP insulation Tinned copper braiding shield PVC jacket Technical parameter: Rated temperature :80ºC Rated Voltage:30V Electrical performance Differental Impedance*(20ºC)(TDR): 90±7Ω Intra-pair skew (TDR ): 15ps/m Attenuation: Frequency(GHz) Att. (dB/m)
0.625 1.0
1.25 1.5
2.50 2.5
5.00 3.6 Remark:Similar specifications can be designed according to customer requirements.

Product Number	CORES	Conductor		Insulation			Overall Shield		Jacket		Max. Cond. Resistance (200C) Ω/km
		AWG	NO./mm	Material	Nom. Thickness mm	Nom. Dia. mm	Al-mylar	Braid No./No./mm	Nom. Thick. mm	Nom. Dia. mm
HT21099***001	4	28	7/0.127	PE	0.16	0.70	Y	16/5/0.12	0.55	4.20	223
		28	7/0.127	PE	0.26	0.90					223
HT21099***002	4	28	7/0.127	PE	0.16	0.70	Y	16/50.12	0.55	4.40	223
		26	7/0.16	PE	0.26	1.00					139
HT21099***003	4	28	7/0.127	PE	0.16	0.70	Y	16/5/0.12	0.55	4.60	223
		24	7/0.20	PE	0.26	1.12					88.9
HT21099***004	4	28	7/0.127	PE	0.16	0.70	Y	16/5/0.12	0.80	5.10	223
		22	17/0.16	PE	0.26	1.30					57.5
HT21099***005	4	28	7/0.127	PE	0.16	0.70	Y	16/5/0.12	0.80	5.10	223
		20	26/0.16	PE	0.26	1.46					34.6
HT21099***006	4	28	7/0.127	PE	0.16	0.70	Y	16/5/0.12	0.80	5.10	223
		22	17/0.16	PE	0.26	1.30					57.5
HT21099***007	4	28	7/0.127	PE	0.16	0.70	Y	16/5/0.12	0.80	5.10	223
		20	26/0.16	PE	0.26	1.46					34.6

Company Profiles:
Founded in 2004 with 16 years of development, we Hwatek established our new plant Nantong Hwatek Wires & Cable Co., Ltd in 2020. Located in Nantong City, Jiangsu Province, our new plant covers 34,000 square meters with 100 million investment.
We are dedicating to R&D and produce various wires and cables like industrial control, communication instruments, medical control, green energy EV and special wires and cables etc. OEM & ODM is also available.
Our Nantong Plant has passed ISO9001, ISO14001, IATF16949, ISO13485 quality system certification. All the ranges of our wires and cables are CCC, UL, CUL, CE, CSA ,TUV,DEKRA,IEC,CQC or ETL qualified. With the company principle 'Profession, Integrity, Eco Friendly and Win-win', we are equipped with a comprehensive sales network to serve customers in various fields around the world.
Frequently Asked Question:
1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
