Servo Motor Plasitc Inject/Injection Mould/Moulding Machine/Machinery 180ton

Product Description

Specification of D-RI180 injection machine
1. Product details:
2. Technical data of D-RI180

SPECIFICATION						D-RI 180
				A		B		C
INJECTION UNIT
SCREW DIAMETER		mm		42		45		50
SCREW L/D RATIO		L/D		23.6		22		19.8
SHOT		cm3		305		350		432
VOLUME(THEORETICAL)
								393
INJECTION WEIGHT(PS)		g		277		319
				138		160		196
INJECTION RATE		g/s
				203		177		143
INJECTION PRESSURE		MPa
SCREW SPEED		rpm			190
CLAMPING UNIT
CLAMP FORCE		kN			1600
					435
OPEN STROKE		mm
SPACE BETWEEN TIE		mm				480x480
BARS(W*H)
					520
MAX.MOULD HEIGHT		mm
					180
MIN.MOULD HEIGHT		mm
					135
EJECTOR STROKE		mm
					50
EJECTOR FORCE		kN
OTHER
MAX.PUMP PRESSURE		MPa			16
					18.5
PUMP MOTOR POWER		kW
					12.5
HEATING POWER		kW
MACHINE		m			4.86x1.30x2.10
DIMENSION(L*W*H)
					300
OILTANK CUBAGE		L
					5.4
MACHINE WEIGHT		t

3. Our Service
3.1 Supply mode: the supplier factory delivery, simple packaging, the supplier agent consignments, the expense is payed by the buyer .

3.2 Terms of payment: the buyer pay 40% of the total payment as the signing of the deposit, the contract comes into effect, pay the balance before shipment.

3.3 Quality assurance: the equipment according to the enterprise standard implementation and mechanical guarantee period is one year, the main electrical appliances for half a year.

3.4 Method of acceptance: equipment processing after the completion of delivery, the buyer sent to the factory acceptance, for commissioning, the buyer to provide raw materials for plastic material.

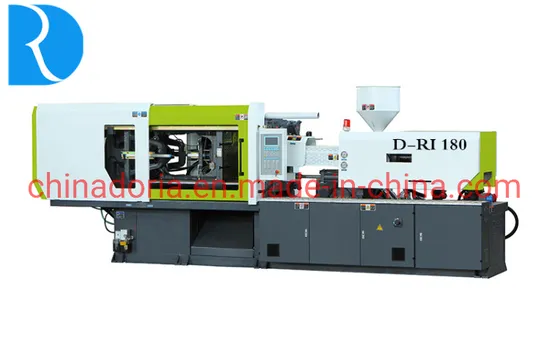

4. Pictures of machine
5. Frequently Asked Questions:
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,
please call us or inform us by email, so that
we will regard your inquiry in priority.
Q: What's the warranty of the machine?
A: One year.
Q: What's the delivery of the machine?
A: 40-45days after we receive the deposit.
Q: Could you tell us how to operate the machine?
A: We will send the installation video and detail instruction manual to
you. And we also have set the correct data of PLC for the machine.
Q: What's type of motor for the machine?
A: Servo motor.
