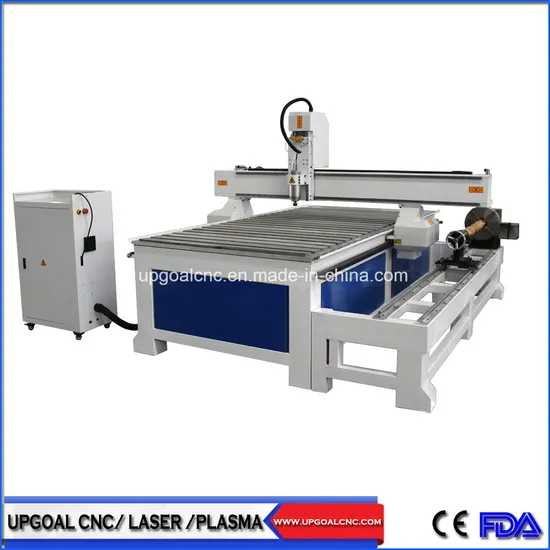

Wood CNC Engraving Rotary Machine with 4 Axis Controller

Product Description

Wood Cnc Engraving Rotary Machine with 4 Axis Controller

Features
1.Welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.
2. 3mm Thickness aluminum T slot working table, more stable and longer life time than normal T slot table.
3. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.
4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.
5. China famous 86BYGH450B stepper motor and Leadshine stepper driver for XYZ-axis, 86BYGH450C stepper motor for A-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.
6. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.
7. Extended gantry & independent removable rotary axis holder, with diameter 300mm 4 chucks, working length 2500mm rotary axis, cylinder processing is in a special zone, each time, no need put the heavy rotary axis on the working table, saving labor and improving working efficiency.
8. DSP A18 4 axis offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.
9. Semi-auto lubrication system,more convenient for maintenance.
10. Auto tool calibration, more convenient for each time Z-axis 0 point setting.
11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
12. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.
Technical Parameters

Effective working area	1300(X)mm*2500(Y)mm*200(Z)mm
4th axis	Diameter 300mm, working length 2500mm, reduction gear type rotary axis
Materials	More thickness steel pipe welded machine holder bed, cast iron gantry
Working table	More thickness (3mm) aluminum T slot working table
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor (86BYGH450B for XYZ-axis, 86BYGH450C for Z-axis) and Leadshine stepper driver for XYZA-axis
Spindle motor	3.2kw water cooling
Spindle speed	0-24000rpm
Inverter	Sunfar
Voltage	AC 220V± 10%, 50/60Hz, single phase or AC 380V±10%, 50/60Hz, three phases
Traveling speed	>25000mm/min
Engraving speed	>12000mm/min
Machine accuracy	0.03mm
Control system	DSP offline control system A18, 4axis, RichAuto
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE

Application
Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc
Reference Sample Photos

Packing and delivery
Reference Working Videos
