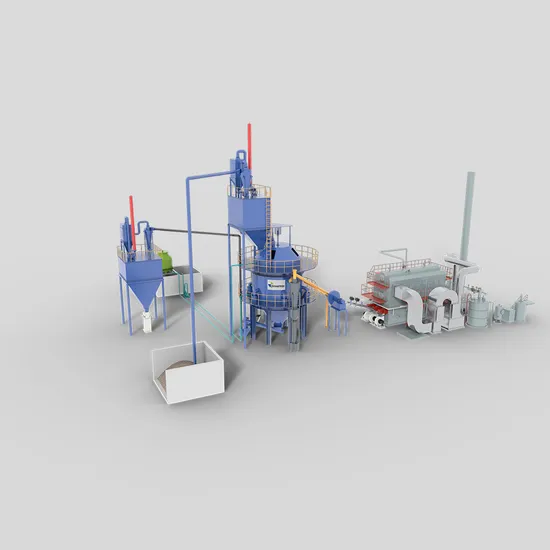

Good Performance Rice Husk Charcoal Biochar Making Equipment
Basic Info.
Model NO.
DFBG
Smokeless or Not
Yes
Structure
Other
Size of Boiler
2t;3t;4t;5t
Size of Thermal Oil Boiler
1.2million;1.8million;2.4million;3million
Gasifier Type
Downdraft Fixed Bed Gasifier
Gasification Agent
Air
Range of Raw Materials
Rice Husks, Straw, Sugarcane Bagasse, Peanut Shell
Moisture Requirement
15%
Size Requirement
10mm
Gas Composition
Co;15-20%H2;10-15%CO2;8-12%;CH4:4%;N2:45-55%
Biomass Consumption
Apx 800;Apx1200;Apx1600;Apx 2000
Gas Production
≥1200;≥1800;≥2400;≥3000
Gas Heat Value
1000-1100kcal/Nm3
Ash Discharge Type
Dry Type
Carbonization Yield%
<30%
Transport Package
Container
Specification
2-5T
Trademark
Powermax
Origin
China
HS Code
8405900000
Production Capacity
200pieces/Year
Product Description
| Model of Gasification Boiler | DFBG400 | DFBG4500 | DFBG4800 | DFBG5500 |
| Size of Boiler (Steamed tons/hour) | 2 | 3 | 4 | 5 |
| Size of Thermal Oil Boiler(kcal/h) | 1.2million | 1.8million | 2.4million | 3million |
| Gasifier Type | Downdraft Fixed Bed Gasifier | |||
| Gasification Agent | Air | |||
| Range of Raw Materials | Rice husks, straw, sugarcane bagasse, peanut shells, sawdust, seed shells, etc | |||
| Moisture Requirement | ≤15% | |||
| Size Requirement | ≤10mm | |||
| Gas Composition | CO:15-20%;H2: 10-15%;CO2: 8-12%;CH4:≥4%;N2: 45-55%; | |||
| Biomass Consumption (kg/h) | APX 800 | APX 1200 | APX 1600 | APX 2000 |
| Gas Production(Nm3/h) | ≥ 1200 | ≥ 1800 | ≥2400 | ≥ 3000 |
| Gas Heat Value | 1000-1 100Kcal/Nm3 | |||
| Ash Discharge Type | Dry Type | |||
| Carbonization Yield% | <30% | |||
| Note: The above data is based on rice husk as the raw material, and there may be differences in data when using other raw materials. | ||||
