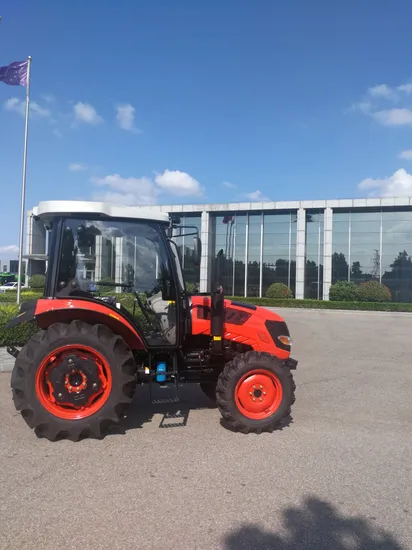

70HP 4WD Produced by Deutz-Fahr Machinery Agricultural Farm Tractor

Product Description

FL704-1
FL55-70 series
HOT SALE technical features:
1. Direct injection engine, optional domestic 4-cyl diesel engine, which can meet different operation requirements.
2. Dual stage clutch, shuttle shift gears transmission, easy to operate.
3. New streamlined hood, nice appearance.
4. Hydraulic steering, small steering radius, portable and flexible.
5. Optional dry or wet air filter, internal or external muffler.

Main parameters	FL704-1
Engine Type	QC4108T70
Max. Torque (Nm @ engine rpm)	(265~275)@1700
Displacement (L)	4.324
Fuel tank capacity (L)	70L/90L
Rating power of engine	51.5/2400
Fuel consumption @ nominal power	≤248
Air Intake Type	Natually-Aspirated
N / Displacement	4/4.324
No. of gears	12F+12R
Shift method	Sliding sleeve/Synchronizer
Max. speed	33.59km/h
Gear position	Command aside
PTO Speed	540/760rpm 540/1000rpm(Optional)
The whole machine size (dimensions) mm	4064×1828×2200(ROPS) 4050×1828×2654(CABIN)
Min. operation mass (kg)	2400(ROPS) 2870(CABIN)
Mini turning Radius (m)	4.5
Rated traction force(KN)	16.5
Deck	Flat Deck
Wheelbase(mm)	2071
Minimum ground clearance(mm)	370
Front/rear wheel track	1350/1450
Tyre size	8.3-24/14.9-30
Steering type	Hydraulic steering
Steering Angle (4 x4)	34°

Other terms:
1. Delivery: 30 days for normal orders
2. Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3. Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
ABOUT DEUTZ-FAHR MACHINERY CO.,LTD
DEUTZ-FAHR MACHINERY COMPANY LTD. is a subsidiary company of Italian SAME DEUTZ-FAHR GROUP. We are available to provide customers with a full range of products, including tractors, harvesters. Covered area 45,000 square meters with 700 employees. We adopt Italy SDF group quality control management system and advanced production system. So we can supply high reliability and good performance tractors and harvesters to the farmers from all over the world.
There are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
After-sales service polices: FARMLEAD tractor is offered 12 months of warranty period of the tractor, which shall start from the 3 month as the shipment date. FARMLEAD will offer free service parts in warranty period, and there is no charge for related work hours and indirect expenses. Service training There are over 460 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
