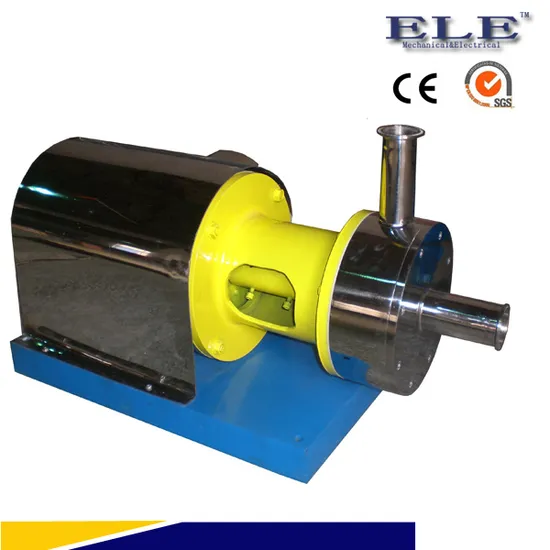

Inline Homogenizer Machinery

Product Description

Hydraulic lifting Homogenizer (EBR)
Description:
High Shear Homogenizer/emulsifier is main product of ELE company and precise emulsification working head is the key for homogenizing/emulsifying effect. The precision between stator and rotor is composed of factors such as space force, concentricity, material hardness, shearing area, linear velocity etc. EBR Series Batch High Shear Homogenizer
/emulsifier is widely used in chemical production, liquid with liquid, liquid with powder. With high homogenizing/emulsifying efficiency, processing time gets quite shorter.
Features:
1, precise combination between stator and rotor for our High Shear Homogenizer/emulsifier;
2, Fine forging for stator and rotor, linear cutting form, claw type structure, two-way suction, high efficiency for circulation, no dead corner for ELE emulsion machines;
3, gap between rotor and stator 0.2mm and short working time;
4, After special heat-treatment, stator and rotor surface wear-resistance is 2 to 3 times of ordinary stainless steel;
5, Claw-structure, drawing material from the bottom of tank into the centre of working head because of the centrifugal force speed up the toward the side of working head;
6, CNC (numerical control machine) guarantee high accuracy space between stator and rotor and being more stable for the gravity;
7, the key parts are processed via fine grinding to make combination between stator and rotor reach American Standards;
8, Dynamic and static balance test for rotating parts to guarantee stability during high speed shearing for the emulsifying machine, low noise to prolong working life of high shear homogenizer/emulsifier;
9, ex-proof motor (option);
10, Hydraulic Lift or Pneumatic Lift
Specifications

Model	Power (kw)	Speed (rpm)	Capacity (L)	Stroke (mm)
EBR-1.1	1.1	3000	< 100	600
EBR-4	4	3000	< 200	800
EBR-7.5	7.5	3000	< 500	900
EBR-11	11	3000	< 800	900
EBR-15	15	1500/3000	< 1200	900
EBR-18.5	18.5	1500/3000	< 1800	1100
EBR-22	22	1500/3000	< 2000	1100
EBR-30	30	1500	< 2500	1100
EBR-37	37	1500	< 3000	1600
EBR-45	45	1500	< 4000	1600
EBR-55	55	1500	< 5000	1600
