Manufacturer Supply 6MPa Pressure Gauges for Sale

Product Description

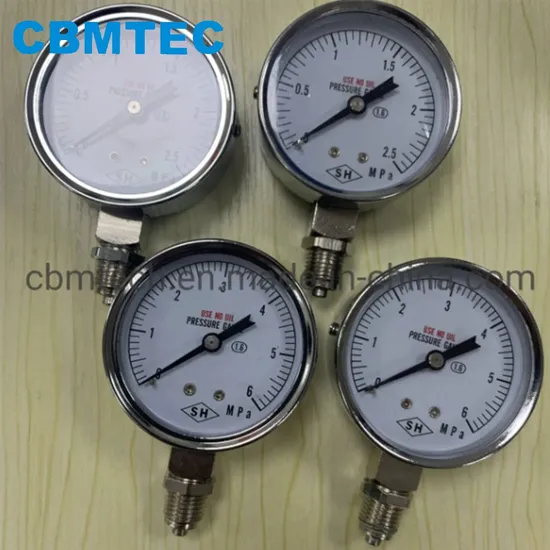

Stainless Steel Pressure Gauge
All Stainless Steel Corrosion-proof pressure gauge specifications:
Standard execntive: GB/T1226-2001
Diameter: 100mm; 150mm
Accuracy: 1.5% (1% available)
Ranges: -0.1MPa -100 MPa (See range table)
Degree of protection: IP55
Ambient temperature: -40ºC~70ºC Medium temperature: +200ºC Max,
Connection: M20 (M20X1.5)
Case: SUS304 original color (Polishing available); Inside bayonet
Socket: SUS316 original color (22x22 Square Stainless Steel)
Bourdon tube: SUS316 Argon-arc
welding Internals: 304 Stainless Steel
All Stainless Steel Vibration-proof pressure gauge specifications:
Standard execntive: GB/T1226-2001
Diameter: 100mm;150mm; 160mm
Accuracy: 1.5% (1% available)
Ranges: -0.1MPa -100 MPa (See range table)
Degree of protection: IP65
Ambient temperature: -5ºC~+60ºC
Connection: M20 (M20X1.5)
Case: SUS304 original color (Polishing available); Inside bayonet
Socket: SUS304 original color (22x22 Square Stainless Steel) Argon-arc welding with the case
Bourdon tube: SUS316 Argon-arc welding,> 4Mpa: Helical tube
Seal: EPDM
Liquid filling: Glycerin
Internals: Stainless Steel
Window: instrument plain glass(Laminated safety glass, organic glass auailable)
Diameter stainless steel vibration-proof pressure gauge
Brief Introduction: Suitable for accurate measuring of the low pressure in vibrative locale.
Technical Specifications
Execntive Standard: JB/T 9274-1999
Instruments Diameter: 100mm; 160mm;
Accuracy Class:100mm; 160mm 1.5%;(1.6%;2.5%)
Range:6kPa -100 kPa
Protection Class: IP65
Ambient Temperature: -40ºC~+60ºC
Connection thread: 100,160 outer diameter M20 (M20X1.5 )
Instrument case: SUS304 stainless steel nature color (option: polished case)
Instrument socket: SUS316 nature color (22mm stainless steel square) Socket welded to case by argon-arc welding
Measurement Elements: Stainless Steel SUS316 double diaphragm plasma welding, laser welding.
Movement: Stainless steel, micro-adjustment Window: 4mm instrument plain glass (organic glass optional)
Oil filled: silicone oils
Oxygen gauge is connected with oxygen regulator, used to measure the high pressured gas discharged from the oxygen cylinders

Case Diameter	19mm/21mm/25mm
Case Material	brass alloy
Surface Material	plastic
Case Colour	black case or chrome plated case
Pressure Range	0~10,000 PSI
Thread sizes	1/8''NPT;1/8'G.
See or not	luminous
Applications	air gun,air valve,air gas regulators,diving bottle valves,and etc.
