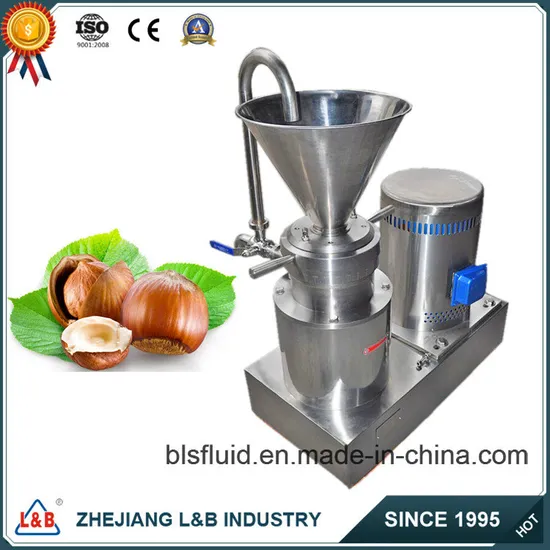

Stainless Steel Colloid Grinder Hazelnut Paste Machine

Product Description

stainless steel colloid grinder hazelnut paste machine
stainless steel colloid grinder hazelnut paste machine
Brand: L&B
Material :304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2000

Product Name:	stainless steel colloid grinder hazelnut paste machine
Description:	Designed according to ISO9001 standard, widely used for grinding media in the food-processing, cosmetics and pharmaceutical industries
Construction:	Horizontal JMW Series and vertical JML series, Split JMF series
Material:	SS304/SS316L
Seal Material:	EPDM, Viton (Standard, FDA approval) , Packing Seal
Max. working temperature:	120 C / 248 F
Max. RPM:	2800 RPM
Rotor Type:	teeth
Motor power:	1.5kw, 2.2kw, 3kw, …22KW,30KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system, Packing seal
Voltage:	110-480V
Motor:	Siemens, ABB, LOCAL,50hz/ 60hz
Surface treatment:	Inner polished and Sandblast outside
Availably connection:	Clamp, Thread Butt weld, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or as per the request of customers

Technical parameters of stainless steel colloid grinder hazelnut paste machine:

Model	Emulsified size (um)	Output T/h	Millstone Dim(mm)	Cooling water pipe(mm)	Outlet Dim (mm)	Inlet Dim (mm)	Speed (rpm)	Power (kw)
JMF-65	2-40	0.02-0.5	65	10	20	30	2800	2.2
JMF-80	2-40	0.3-1	80	12	25	48	2800	4
JMF-100	2-40	0.5-2	100	12	25	66	2800	5.5/7.5
JMF-120	2-40	0.5-3	120	12	32	66	2800	7.5
JMF-140	2-40	0.5-4	140	12	32	66	2800	7.5/11
JMF-180	2-40	1.0-7	180	12	38	100	2800	11/15
JMF-200	2-40	1.0-10	200	12	38	100	2800	15/18.5

More details
Package and delivery
Our company
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
