Cost-Effective Low Noise Concrete Mixer Electric Diesel Cement Mixer Concrete Mixer
Basic Info.
Model NO.
CMA400
Type
Concrete Mixer
Shotcrete Type
Wet
Structure
Rotor Type
Productivity
120m²/h
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Engine
Gasoline/Diesel/Electric
Speed
25-30rpm
Capacity
400L
Drum Thickness
3mm
Package
Iron
Size
1000*1000*1100
Drive Mode
Gear
Weight
350kg
Product Name
Cocnrete Mixer
Power Type
Electric
Function
Mix Concrete
Application
Building Constrction
Usage
Engineering Construction
Concrete Mixer Type
Sand Cement Mixing Machine
Applicable Industries
Construction Work
Transport Package
Iron
Specification
MCM400
Trademark
SFJX
Origin
Henan
HS Code
8474310000
Production Capacity
1000PCS/Month
Product Description
Product Parameters| Model | 260L | 300L | 350L | 400L | 450L | 500L | 600L | 700L | 800L | |
| Concrete mixer | Drum capacity | 260L | 300L | 350L | 400L | 450L | 500L | 600L | 700L | 800L |
| Drum mouth | 450mm | 450mm | 516mm | 516mm | 516mm | 566mm | 566mm | 600mm | 600mm | |
| Drum max dia | 700mm | 700mm | 800mm | 800mm | 800mm | 900mm | 900mm | 1000mm | 1000mm | |
| Drum height | 687 | 777 | 766 | 851 | 936 | 920 | 1040 | 1075 | 1205 | |
| Rpm | 18-25rpm | |||||||||
| lower drum thickness | 4mm | |||||||||
| upper drum thickness | 3mm | |||||||||
| productiveness | 2-5m³/h | 2-6m³/h | 3-7m³/h | 4-8m³/h | 5-9m³/h | 6-10m³/h | 7-11m³/h | 8-12m³/h | 9-13m³/h | |
| dimension | 2645*1090 *1336 | 2645*1090 *1429 | 2800*1120 *1436 | 2800*1120 *1481 | 2800*1120 *1549 | 2879*1120 *1616 | 2879*1120 *1736 | 2960*1120 *2000 | 2960*1120 *2140 | |
| Engine | Diesel | 6hp | 9hp | |||||||
| gasoline | 6.5hp | 9hp | ||||||||
| electric | 1.5kw | 2.2kw | 3kw | |||||||
| start system | Recoil/electric | |||||||||
| Unit package | net weight | 230kg | 250kg | 260kg | 270kg | 280kg | 320kg | 330kg | 390kg | 420kg |
| gross weight | 270kg | 290kg | 300kg | 310kg | 320kg | 370kg | 380kg | 440kg | 480kg | |
| package size | 1835*810 *1010 | 1830*810 *1090 | 2030*910 *1100 | 2030*910 *1175 | 2030*910 *1255 | 2070*1000 *1400 | 2070*1100 *1500 | 2110*1100 *1500 | 2110*1150 *1650 | |
| container loading | 20GP | 22 | 22 | 20 | 20 | 20 | 12 | 10 | 6 | 6 |
| 40HQ | 52 | 52 | 52 | 44 | 44 | 36 | 36 | 12 | 12 | |

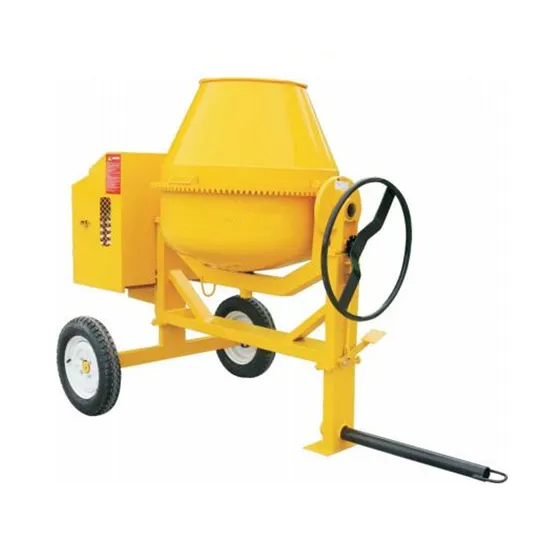

(1)CharactersPortable Concrete mixer : CM260, CM300, CM350, CM400, CM450, CM500,CM600, CM700,CM800Suitable for batching concrete/cement , mixing seed /feed ,as well as numerous industrial useSolid and durable drum constructionReinforced square tubular frame with welded steel yoke.One piece cast-iron ring gear for long lifeBelt DriveReplaceable 3-pieces blades creates different mixing patterns for a more consistent mixing .Wheel and hand brake tilting functions.Tow bar includedDifferent design or models is availableCustomer's special and necessary adjustments for mixers is acceptable Product Description
Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1: Are you a manufacturer?
A1:Yes, we have been offering specialized products in this field for 22 years.
Q2:How do you pack these products?
A2:Usually packed according to export standard or your requirement.
Q3:Is it customizable?
A3:Yes, according to your requirements.
Q4: After-sales service?
A4:24-hour technical support by phone, email.
Q5:What is your lead time?
A5:Spot goods usually take 7-10 days, and customization takes 15-25 days.
