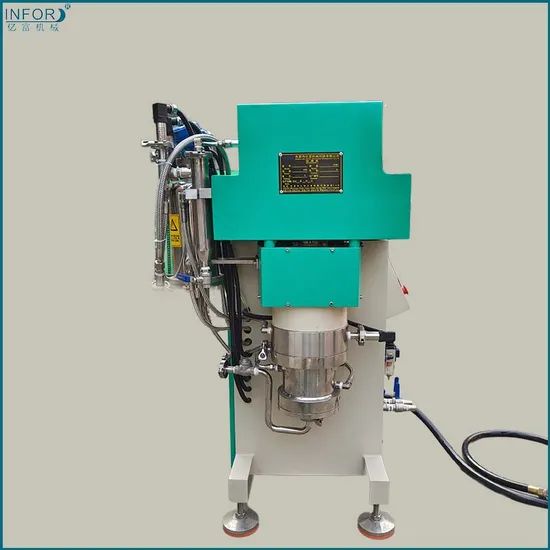

150L Nanometer Sander Laboratory Vertical Rod Pin Nano Sand Mill Grinding Machine

Product Description

150L Nanometer Sander Laboratory Vertical Rod Pin Nano Sand Mill Grinding Machine
Product Description
The LPM series sand mill has been specially designed and optimized for reliable application of 0.05-2.0mm small grinding beads. Innovative concepts and specially designed functional components can achieve extremely high production capacity
Main Product Description:
Grinding fineness: 50-1500nm
Grinding medium: 0.05-2.0mm
Features:

1. The driver and rotor are arranged vertically to avoid any bending moment on the drive shaft, making operation more stable and reliable
2. The special structural design of the sieve free separator gives it strong centrifugal force, solves the problem of blockage, and is a prerequisite for the reliable use of small grinding beads
3. Special rod pin optimization design allows small grinding beads to be thrown in the outer ring grinding area, thereby achieving maximum grinding efficiency
4. Vertical unique vertical reverse discharge design, achieving stable high flow discharge
Detailed parameter

Model/Parameter	Motor power (Kw)	Grinding chamber volume (L)	Grinding medium (mm)	Feed flow (L/h)	Cooling water consumption(m³/h)	Weight (kg)
LPM-1	7.5	1	0.05-2.0	200	0.6	380
LPM-6	15	6	0.05-2.0	1000	1.5	1300
LPM-15	37	15	0.05-2.0	2000	2	1800
LPM-30	45	30	0.05-2.0	4000	2.5	2200
LPM-60	90	60	0.05-2.0	8500	4	3600
LPM-150	250	150	0.05-2.0	13000	6	7500

Product Application
Specially designed for laboratory and small-scale testing projects, including nanomaterials, silicon carbon negative electrodes, lithium iron phosphate, ink, alumina, oxide, silicon dioxide, ATO, ITO, graphene, etc.
