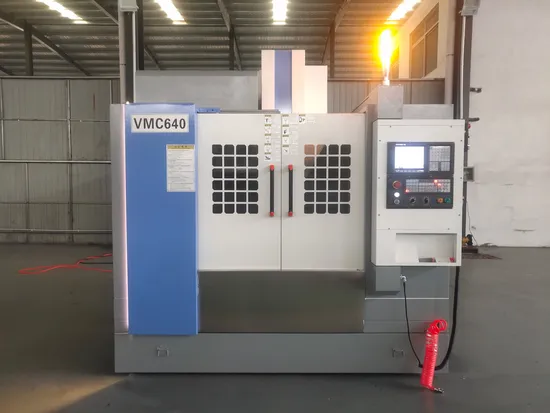

CNC Center Drilling&Milling Process Center Vmc640L

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: VMC640L
Type: Vertical
CNC or Not: CNC
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days

	VMC640---Linear guideways in 3 axes
Travel	X axis	600mm
	Y axis	400mm
	Z axis	450mm
	Spindle nose to table	80-530mm
	Spindle center to column	430mm
Feed	max X rapid feed	24 m/min
	max Y rapid feed	24 m/min
	max Z rapid feed	20 m/min
	Cutting feed	1-10m/min
Table	Table size	800×320mm
	Max load	400Kg
	T slot	16×3
	Speed	8000rpm
	Spindle taper	BT40-120
	Main motor	3.7 KW
Tool Changer	Tool changer type
	Tool capacity	116
	Tool changing time	2.5 seconds
Accuracy	Accuracy	±0.006 mm
	Repeatability	0.008mm
Other	Weight	2500 Kgs
	Size	2200×1900×2500

Item	Origin	Brand	Spec
Spindle unit	Taiwan		BT40-120
Linear guideways	Taiwan	hiwin	Diameter 30mm
Ball screws(C3 )	China		C3 class
Bearings	Germany	IBC	BS25M52
Nuts	Taiwan		M25X1.5
Electronics	French	Scneidar	Set
