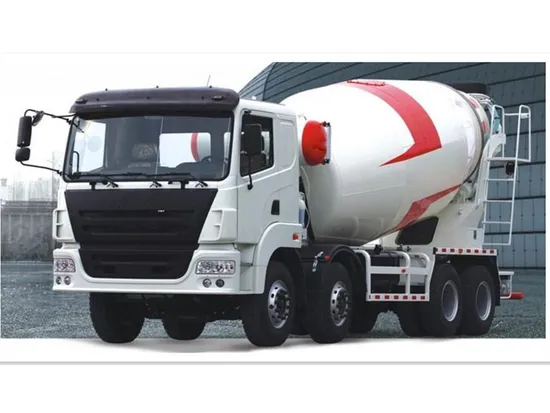

8*4 345HP Concrete Mixer Truck Sy312c-6W with 10 M3 Mix Capacity for Sale

Product Description

Product Description Specialized Cab
Safe and secure
Built for the driver
Convenient ACCESS maintenance
Attractive styling
Panoramic monitoring (optional)
Improved Braking By making full use of exhaust valve braking technology, braking distance has been reduced by 15% and brake lining wear is decreased by 50%. High-volume air compressor, high quality piping, and new sealing technology that shortens air build up time and brake response time.
Energy-saving Technology The engine dual power mode, coupled with the unique intelligent transmission's power matching technology makes a 10% fuel savings.
Low Deck Technology
The frame is made of high-strength special steel plates, improving reliability and safety. It uses original subframe-free structure combined with the hollow front and back-end structure design, reducing the center of gravity by 100mm and making the vehicle lighter.
Leading Edge Steering Technology
The large displacement power steering pump reduces operator effort by 40%. Optimized chassis geometry and front axle steering angle reduces the minimum turning radius by 15%.
Anti-buildup Technology
The three-section blade provides an efficient discharge angle. The flushing device, an innovative front taper and ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space, and to prevent aggregate from piling up at front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.
Smart Operating Technology
Each truck is equipped with a GPS system, which features five functions including vehicle monitoring, record/playback, alarm reporting, fleet management, statistics and analysis. With this information you can keep good management of the mixer truck's location, maintenance items, discharge, etc.
Maintenance Tips Dashboard mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance scheduling. Detailed Photos
Product Parameters

Overall Specification	Overall Specification
Curb Weight	14850 kg
GVW	43650 kg
Dimension (L*H*W)	9945×2500×3980mm
Wheel Base	4090+1350 mm
Drum
Mix Capacity	12 m³
Feeding Speed	≥8 m³/min
Discharge Speed	≥5 m³/min
Water Tank Capacity	400 L
Engine
Displacement	9.726 L
Rated Power/Rev Speed	257/1900 kW/rpm
