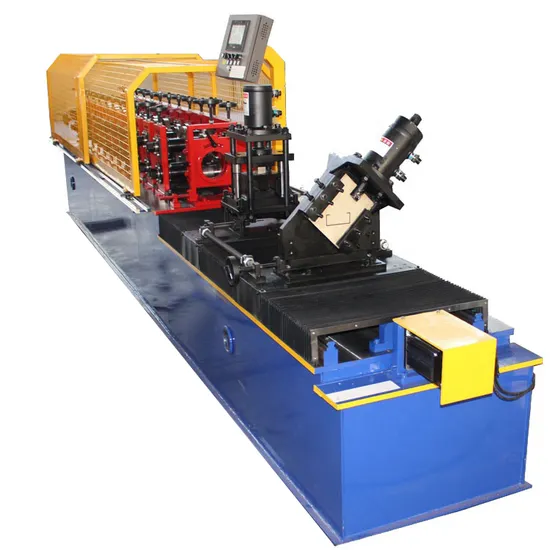

Full Automatic Light Gauge Steel Keel C U Channel Drywall Steel Frame & Purlin Machines Cold Forming Metal Hat Channel Shape Stud and Track Roll Forming Machine

Product Description

Detailed Parameters
Full automatic Light Gauge Steel Keel C U Channel Drywall steel frame & purlin machines cold forming Metal hat channel shape Stud and Track Roll Forming Machine
The Full automatic Light Gauge Steel Keel C U Channel Drywall steel frame & purlin machines cold forming Metal hat channel shape Stud and Track Roll Forming Machine can produce a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Stud and Track wal machines are available to suit almost all situations.
The light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process. It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.
Detailed Photos
Product Parameters

Material: pre-painted steel coil, galvanized steel coil, galvalume steel coil; Thickness: 0.3mm - 0.8mm; Width: as per drawings. (1). Forming stations: 12; (2). Roller material: 45# steel with CNC machining and surface is being hard chrome; (3). Diameter of shaft: ¢50mm solid forged 45 #steel, quenching process; (4). Material of shaft: solid 45# steel with grinding process; (5). Frame of the machine: square box structure welded with steel; (6). Wall panel: independent style; (7). Forming motor power: 4KW; (8). Hydraulic station motor power: 4KW; (9). Control system: PLC brand is DELTA from Taiwan; (10). Material of cutting blade: Cr12MoV with hard treatment, HRC52-68; (11). Driving mode: single chain 1 inch; (12). Forming speed: 15-20m/min; (13). Power supply: 380V, 50HZ, 3 PHASES; (14). Dimensions of forming machine: 6200mm*900mm*1200mm (approximate)
