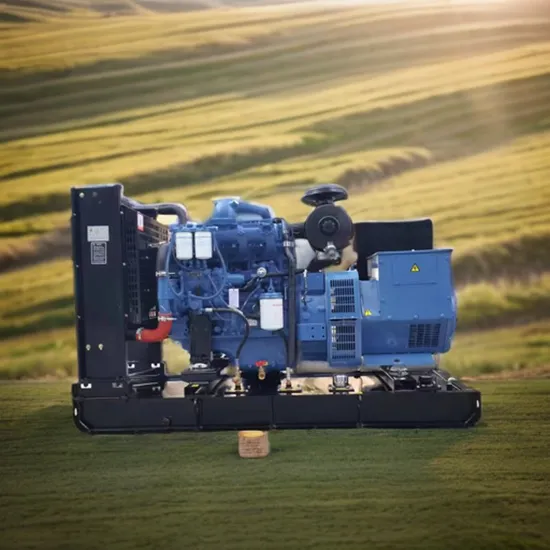

Premium Quality 50kw Diesel Generator for Land Applications
| US$4,500.00-5,500.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
CYGF-SK50-50P-O
Type
Self-Starting Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Wind Cooling
Output Type
AC Three Phase
Speed
1500rpm
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Product Name
Diesel Genertor
Rated Voltage
400V
Control Panel
Deepsee
Rated Current
15A
Starting Method
Electrical Strat
Frequency
50Hz
Color
Customers′ Request
Transport Package
Wodden
Specification
1600*800*1200
Trademark
CY POWER
Origin
Guangdong, China
HS Code
85021100
Production Capacity
10000
Product Description
| ZHONG SHAN CHUANGYUAN POWER EQUIPMENT.,LTD | ||
| Industrial generator set technical Sheet | ||
| Genset Model | CYGF-SK50-50P-O | |
| Genset Output(Kw/Kva) | 50/62.5 | |
| Rated speed (r/min) | 1500 | |
| Rated Voltage(V) | 400 | |
| Rated frequency(Hz) | 50 | |
| Ranted current(A) | 90.2 | |
| Power factor( Cos φ) | 0.8(lagging) | |
| Number of phase/Lines | Three phase four wire | |
| Controller brand | SmartGen | |
| Switch brand | CHINT | |
| Battery | 2*120Ah | |
| Industrial silencer with flexible connects | YES OR NO | |
| Fuel tank | YES OR NO | |
| Test report, Drawing , Manuals | YES | |
| Open Genset weight(kg) | ≈1.2T | |
| Open Genset size(LxWxH)mm | ≈1600*800*1200 | |
| Engine | Model | SC4H95D2 |
| Type | Four stroke, in-line, water cooling, pressurized air cooling | |
| Prime Output(kW) | 68 | |
| standby output(kW) | 75 | |
| Cylinder/Bore/Stroke | 4/105/124 | |
| Displacement(L) | 4.3 | |
| Compression ratio | 17.3:1 | |
| Oil capacity(L) | 13 | |
| Coolant capacity(L) | 6.8 | |
| Speed regulation mode | Electrical governor | |
| Starting mode | DC24V electric start(Battery) | |
| Cooling mode: | Closed fresh water circulating cooling | |
| Firing sequence(From the free end) | 1-3-4-2 | |
| Crankshaft rotation direction | Counter clockwise(facing flywheel end) | |
| Place of Origin | Shanghai Diesel | |
| Alternator | Model | KAL224E2 |
| Rated capacity(KVA) | 62.5 | |
| Rated output(kW) | 50 | |
| Rated voltage(V) | 400 | |
| Rated current(A) | 90.2 | |
| Rated frequency(Hz) | 50 | |
| power factor( Cos φ) | 0.8(lagging) | |
| Protection level: | IP23 | |
| Insulation grade | H | |
| Excitation mode | Brushless AVR,excitation | |
| Phase number | Three phase four wire | |
| Place of origin | Kwise Generator Pte Ltd | |
| Function | Power supply form | Battery 24V power supply |
show contents | Voltage, current, frequency, KVA, kW, kvar, kwh, KVAh, kvarh, power factor PF, mains voltage, mains frequency, speed, oil pressure, cooling water temperature, unit operation time, battery voltage, etc | |
| Safety protection function | Overspeed alarm, overspeed high shutdown, low oil pressure alarm, low oil pressure shutdown, high water temperature alarm, high water temperature shutdown, overvoltage alarm (120%) shutdown, undervoltage alarm (85%) shutdown, overcurrent alarm (110%) shutdown, low battery voltage (< 19v) alarm | |
