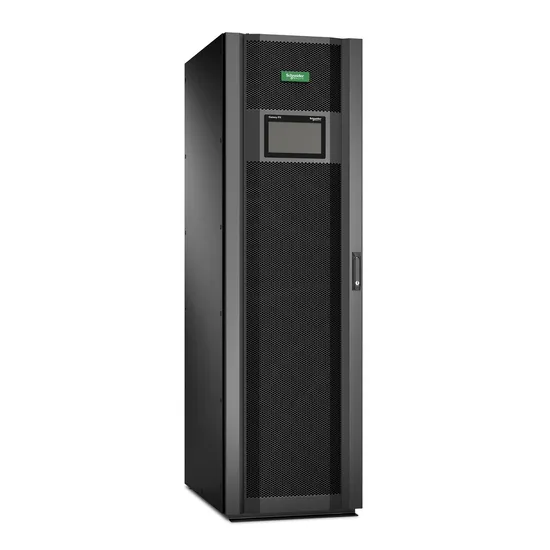

APC Galaxy Px UPS 16kVA 16kw 400V 415V Pure Sine Wave Three Phase Online UPS for Computers/Data Rooms/Hospitals Equipment
| US$15,620.00-256,123.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
APC Galaxy PX UPS
Protection
Short Circuit
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Medium Type
Equipment Mode
Decentralized/Centralized Model
Brand
APC
Product Name
APC Galaxy Px UPS
Rated Capacity
16kVA-160kVA
Power Factor
1
Power Modules
16kw
Input Voltage
340 – 477 V @ Full Load
Input Frequency
50/60 Hz
Output Voltage
380 V/400 V/415 V
Output Frequency
50/60 Hz
Overload Capacity
150% for 60 Seconds, 125% for 10 Min
Operating Temperature
0 to 40 °c (32 to 104 °f)
Trademark
APC
Origin
China
HS Code
8504402000
Production Capacity
1000
Product Description
SPECIFCATION| Technical specifications | ||
| Symmetra PX 48 kW | ||
| Input | ||
| Gnid system | 3P+N+G | |
| Voltage range | 340-477V@full load | |
| Frequency | 50 Hz | |
| Frequency range | 40-70 Hz with 10 Hz/s slew rate | |
| Power factor (PF) | >0.99@load>25%,>0.95@load>15%,>0.90@load>10% | |
| THDi (full load) | <5% | |
| Nominal input current | 77A@380V,73A@400V,70A@415V | |
| Maximum input current | 84.4A@380V,80.2A@400V,77.3A@415V | |
| Input current limit | 98.3A@380V/400 V/415 V | |
| Maximum input short-circuit level | 30 kA | |
| Output | ||
| Power rating | 48 kW | |
| Grid system | 3P+N+G | |
| Voltage (nominal) | 380400/415V L-L | |
| Nominal output current | 73A@380V,69A@400V,67A@415V | |
| Frequency | 5N60 Hz bypass synchronized,50/60 Hz+/-0.1%free running | |
| Synchronized slew rate | Programmable to 0.25,0.5,1,2,4,6 Hz/s | |
| Overload (normal and battery operation) | 150%for 60 seconds,125%for 10 min,100%continuous | |
| V thd | <2%from 0 to 100%linear load,<5%full nonlinear load according to IEC/EN 62040-3 | |
| Load PF | From 0.5 leading to 0.5 lagging without any derating | |
| Bypass | ||
| V nomina | 380V/400 V/415V | |
| Voltage (range) | +/-10%from selected voltage | |
| Frequency (nominal) | 50/60 Hz | |
| Frequency (range) | +/-0.1 Hz,+/-3 Hz,+/-10 Hz(user selectable) | |
| Nominal input current | 73A@380V,69A@400V,67A@415V | |
| Fficlen | ||
| AC-AC at nominal mains | ≥95%at35%-100%load;≥90%@15%-34%load | |
| DC-AC at nominal battery voltage | ≥94%at 25%-100%load;≥90%@15%-24%load | |
| Mechanical | ||
| Dimensions (HxWxD) | 1,991x600x1,070 mm | |
| Weight | 796 kg | |
| Environmental | ||
| Storage temperature,UPS,and batteries | -15 to 40ºC with batteries,approximately 6-8 months 25 ºC battery self-discharge, 1-2 months@45ºC | |
| Operating temperature* | 0 to 40 ºC (32 to 104F) | |
| Regulatory compliance | ||
| CE, EN/IEC 62040-1-1, EN/IEC/UL 60950-1, EN 50091-2/IEC 62040-2 (class A), FCC15A, EN/IEC 62040-3 | ||
