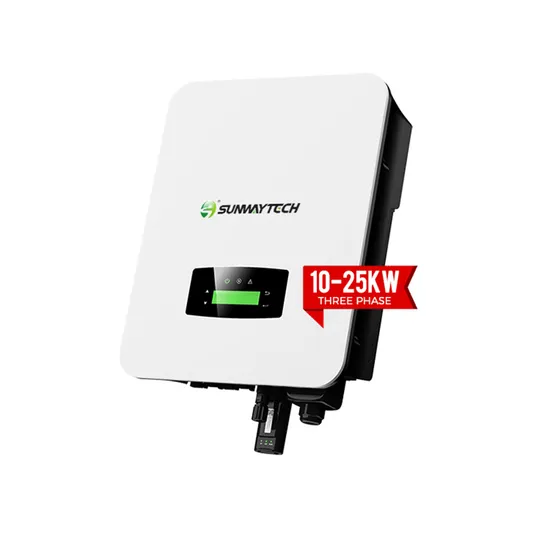

on Grid Solar Inverter 20kw 20000 Watt 10kw 15kw Pure Sine Wave Grid Tie Inverter Anti-Reflux and WiFi Monitor
Basic Info.
Model NO.
SW20KTL3-EU
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
20kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Sunway
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave String
Sine Wave Inverter
Size
535*370*192mm
Weight
20kg
Max. Operation Altitude ( M )
<4000
Protection Degree
IP 65
Enclosure Material
Aluminum
Communication
RS485/ WiFi/ Wire Ethernet / GPRS (Optional)
Ambient Temperature Range (°c)
-25 to 60
MPPT Voltage Range
150-1000V
Product Name
on-Grid Inverter
Keyword
Grid Solar Panel Inverter
Trademark
SUNWAY
Packaging & Delivery
Package Size
54.60cm * 45.00cm * 25.70cm
Package Gross Weight
22.000kg
Product Description
The Sunway Series Three-phase string inverters are designed for residential and small commercial PV system applications, rating from 3kW to25kW. Al models have unibody housings with aluminum structure which is anodized, increasing durability and effectively prevents corrosionEquipped with external inductors. the unibody housing can ensure efhcient heat dissipation, which signifcantly improves the reliability ancextends the life of the inverters.
Communication implements are via the Wi-Fi module (can be changed to Ethernet / GPRS). Check the system status anytime and anywhere viaonline portal or APP System Architecture
Detailed Photos
Product Parameters
| PV Input Data | SW10KTL3-EU | SW15KTL3-EU | SW20KTL3-EU | SW25KTL3-EU |
| Max. DC Power (W) | 15000 | 22500 | 30000 | 37500 |
| Max. DC Voltage(V) | 1100 | |||
| MPPT Voltage Range(V) | 150 -1000 | |||
| MPPT Full Power Voltage Range(V) | 500-850 | |||
| Rated Input Voltage (V) | 620 | |||
| Start-up Voltage (V) | 150 | |||
| Max. Input Current (A) | 15x2 | 20+32 | 32×2 | |
| Max. Short Current(A) | 25x2 | 30+48 | 48×2 | |
| No. of MPP Tracker / No. of PV String | 2/2 | 2/3 | 2/4 | |
| Input Connector Type | MC4 | |||
| AC Output Data | ||||
| Max. Output Power (VA) | 11000 | 16500 | 22000 | 27500 |
| Nominal Output Power (W) | 10000 | 15000 | 20000 | 25000 |
| Max. Output Current (A) | 17 | 27 | 32 | 40 |
| Nominal Output Voltage (V) | 3P+N+PE /3P+PE 230/400 | |||
| Grid Voltage Range | 260Vac-519Vac (according to local standard) | |||
| Nominal Output Frequency(Hz) | 50/60 | |||
| Grid Frequency Range | 45-55Hz/55-65Hz(according to local standard) | |||
| Output Power Factor | 1 default (adjustable from 0.8 leading to 0.8 lagging) | |||
| Output Current THD | <3% | |||
| Efficiency | ||||
| Max. Efficiency | 98.70% | 98.75% | ||
| Euro Efficiency | 98.23% | 98.35% | ||
| Protection | ||||
| PV Reverse Polarity Protection | YES | |||
| PV Insulation Resistance Detection | YES | |||
| AC Short Circuit Protection | YES | |||
| AC Over Current Protection | YES | |||
| AC Over Voltage Protection | YES | |||
| Anti-lslanding Protection | YES | |||
| Residual Current Detection | YES | |||
| Over Temperature Protection | YES | |||
| Integrated DC switch | YES | |||
| Surge Protection | Integrated (Type II) | |||
| Smart IV Curve Scaning | YES | |||
| Quick Arc Fault Circuit Interruption | Optional | |||
| General Data | ||||
| Dimensions (W x H× D, mm) | 370×510×192 | 370×535×192 | ||
| Weight (kg) | 17 | 18 | 20 | |
| Protection Degree | IP65 | |||
| Enclosure Material | Aluminum | |||
| Ambient Temperature Range (°C) | -25 to 60 | |||
| Humidity Range | 0-100% | |||
| Topology | Transformerless | |||
| Communication Interface | RS485 /WiFi / Wire Ethernet /GPRS (optional) | |||
| Cooling Concept | Intelligent fan cooling | |||
| Noise Emission (db) | <30 | <40 | <51 | |
| Night Power Consumption(W) | <1 | |||
| Max. Operation Altitude(m) | ≤4000 | |||
| Certifications and Standards | ||||
| EMC Standard | EN/IEC 61000-6-2, EN/IEC 61000-6-3, EN61000-3-2, EN61000-3-3, EN61000-3-11, EN61000-3-12| | |||
| Safety Standard | IEC 60068, UL1741, EN62109 | |||
| Grid-connection | IEEE1547, CSA C22, EN50549, VDE4105,VDE0126, RD1699, ABNT NBR16149 & 16150, AS4777.2, NB/T32004,G98/G99,IEC61727 | |||
