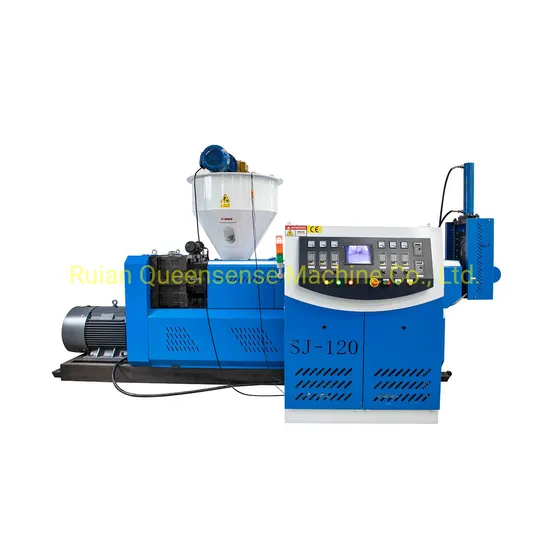

PE/PP/ABS/PC Single Screw Waste Plastic Recyling Machine
| US$15,000.00-21,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SJ-A100
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Output
60-130kgs
Screw Material
38 Crome
Screws
90/100/110/120
Output Capacity
68-135kgs
Transport Package
Wooden Box
Specification
CE
Trademark
QUEENSENSE
Origin
China
HS Code
8477201000
Production Capacity
60-135kg/H
Product Description
This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc.It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same
Discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance,
And favorable economic benefit.
| Model | SJ-A90 | SJ-A100 | SJ-A110 | SJ-A120 |
| Type Diameter of Screw Stem | φ90 | φ100 | φ110 | φ120 |
| Major Diameter Ratio of Screw Stem | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 |
| Rational Speed of Screw Stem | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Main Motor Power | 22kw | 30kw | 37kw | 45kw |
| Output | 68kg/h | 95kg/h | 120kg/h | 135kg/h |
| Weight of overall(kg) | 2600kg | 2800kg | 3000kg | 3200kg |
| Cover dimensions (l×w×h) (mm) | 4000×1500×1800 | 4000×1500×1800 | 4000×1500×1800 | 4000×1500×1800 |
