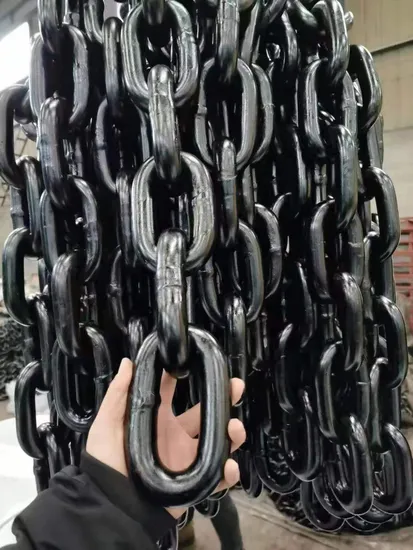

High Hardness 25mnv Black Painted 18× 64/26× 92/34× 126 for Mining with Good Usage Feedback
| US$500.00-1,000.00 | 1 Ton (MOQ) |
Basic Info.
Model NO.
D18mm
Specification
16-48mm
Trademark
ODM/OEM
Origin
Shandong, China
HS Code
7315820000
Production Capacity
400mts/Month
Product Description
High Hardness 25mnv Black Painted 18×64/26×92/34×126 For Mining With Good Usage Feedback| Material | Iron | |
| Place of Origin | Tai'an China | |
| Packaging Details | DIN5685 commercial chain packed in bunny bags,carton,plastic drum.iron durm with wodden/bamboo/iron pallet and any way according to your requirements | |
Attached a form for your reference and we could produce any size based on your needs.
| HIGH STRENGTH MINE CHAIN | ||||||||||
| D*P (MM) | (MM) | P (MM) | A(MM) INNER WIDTH (MIN) | A(MM) OUTER WIDTH (MAX) | R(MIN) RADIUS OF ARCH | BREAKING LAD(KN) | BREAKING LAD(KN) | ELONGATION ON TEST LOAD | ELONGATION ON TEST LOAD | QUALITY GRADE |
| 10x40 | 10±0.4 | 40±0.5 | 12 | 34 | 1.9 | 85 | 110 | 1.4% | 12% | B |
| 100 | 130 | 1.6% | 12% | C | ||||||
| 14x50 | 14±0.4 | 50±0.5 | 17 | 48 | 4 | 150 | 190 | 1.4% | 12% | B |
| 200 | 250 | 1.6% | 12% | C | ||||||
| 18x64 | 18±0.5 | 64±0.6 | 21 | 60 | 6.6 | 260 | 320 | 1.4% | 12% | B |
| 330 | 410 | 1.6% | 12% | C | ||||||
| 22x86 | 22±0.7 | 86±0.9 | 26 | 74 | 9.5 | 380 | 480 | 1.4% | 12% | B |
| 490 | 610 | 1.6% | 12% | C | ||||||
| 26x92 | 26±0.8 | 92±0.9 | 30 | 86 | 13.7 | 540 | 670 | 1.4% | 12% | B |
| 680 | 850 | 1.6% | 12% | C | ||||||
| 30x108 | 30±0.9 | 108±1.0 | 34 | 98 | 18 | 710 | 890 | 1.4% | 12% | B |
| 900 | 1130 | 1.6% | 12% | C | ||||||
| 34x126 | 34±1.0 | 126±1.2 | 38 | 109 | 22.7 | 900 | 1140 | 1.4% | 12% | B |
| 1160 | 1450 | 1.6% | 12% | C | ||||||
| 38x137 | 38±1.1 | 137±1.4 | 42 | 123 | 29 | 1450 | 1810 | 1.6% | 12% | C |
| 42* | 110* | |||||||||
| 42x146 | 42±1.3 | 146±1.5 | 46 | 135 | 35.3 | 1770 | 2220 | 1.6% | 12% | C |
| 46* | 115* | |||||||||
