Hcvac New Furniture Table Chair Black Gold Chrome PVD Vacuum Plasma Coating

Product Description

Product Description

Stainless steel furniture table chair black PVD titanium vacuum plasma coating machine
The machine can get all kinds of color on stainless steel products, we can make machine Diameter from 800mm until 3200mm, height from 800mm until 7200mm, it suitable for coating all small parts, stainless steel sheet, stainless steel pipe, stainless steel counter, stainless steel connection. Sainless steel chair. In China. 95% of Foshan stainless steel market are using our machine to decorative coating. We already exporting this machine to German,Korea,India,Thailand, Indonesia, Singapore,Turkey, Dubai, Egypt,Iran,Vietnam and other more countries.
PVD COATING COLOR:
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C,O) and DLC
Stainless steel sheets size(2 pieces per cycle,3 pieces per cycle,4 pieces per cycle,6 Pieces per cycle)
size: 4" x 8" (1219mm x 2438mm) size: 4" x 10" (1219mm x 3048mm) size: 5" x 10" (1523mm x 3048mm) size (1500mm*4000mm) or More Longer.
Stainless steel Accessories,Including Stair,Hotel trolley,chair,table,Dishes,spoons,bowls,coffee cup,teapot and others,Biggest size can load Daimeter2000*Height3500mm
Stainless steel tubes:6 Meters Long Diameter upto 127mm
We also produce Continuous Inline pvd coating line,Stainless steel sheet can be loaded sheet by sheet
The designed for stainless steel sheet to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chenical coating. The chamber diameter of this series is 1800-2300mm, and height is 3600-4500mm, it can coat three sheets that size is 1220X4000mm; With three sets of large power vacuum pumping systems, high pumping speed, short cycle time, with 34-56 pieces of roud arc target, they are installed reasonable, at the same time, equipment is equipped with pulsed bias system, which make the adhesion of coating strong, color of coating uniform.
Touch screen+PLC control achieved full automatic of equipment, manual and auto can be switched any time, this make machine reliable and easy operation. The colors of this equipment can do are gold, silver, brown, black, rose gold, coffee, raibow, purple and blue etc decorative coatings, and it's widely used in metals, furniture, lights, hardware, car parts and aircrafts etc, all performances of equipment have reached international advanced level and have exported to Asia, European and American countries.
Those are related sizez and Technical data:

Model	HCCA-1818	HCCA-2236	HCCA-2270
Dimension	D1800*H1800mm	D2200*H3600mm	D2200*L7000mm
Coating mode and main confirguration	arc targets+sputtering	arc targets	arc targets
Power source	Electric-arc power, Filament power, Pulsed bias power supply
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical top opening door or Horizontal open front door, pump system postposition, double water cooling
Vacuum system	Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

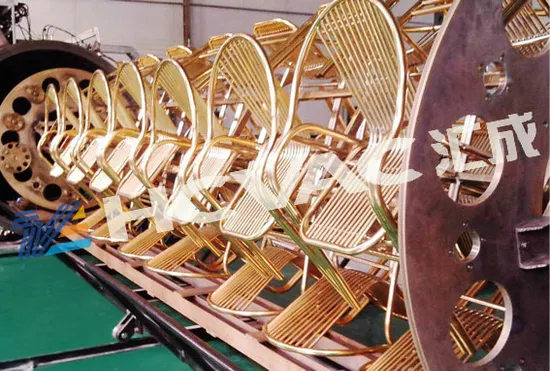

Those are the machines and PVD coated products

Vertical side-door type:
Vertical hang-door type:
Horizontal type:
Features

HCCA SERIES LARGE EQUIPMENT
Vertical side door type	Mode	HCCA-1818	HCCA-2325	HCCA-2335	HCCA-2340	HCCA-2345
	size(mm)	Ф1800×H1800	Ф2300×H2500	Ф2300×H3500	Ф2300×H4000	Ф2300×H4500
Horizontal side door type	Mode	HCCA-2270H	HCCA-2470H	HCCA-2852H	HCCA-3042H	HCCA-3528H
	size(mm)	Ф2200×L7000	Ф2400×L7000	Ф2800×L5200	Ф3000×L4200	Ф3500×L2800
Vertical hanging door type	Mode	HCCA-2236V	HCCA-2240V	HCCA-2545V	HCCA-3320V	HCCA-4222V
	size(mm)	Ф2200×H3800	Ф2200×H4000	Ф2500×H4500	Ф3300×H2000	Ф4200×H2200
Remark	We can design the dimension of the equipment according to customer's requirement.

Application
Machine Category:
Company Information:
Factory workshop:
Certificate:
Delivery:
Clients:
Why Choose HCVAC system? Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part's history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
