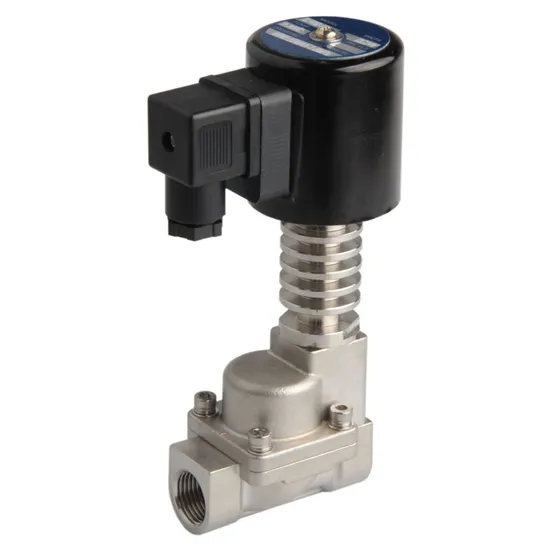

Xlh Series 300 Degree G1/2′ ′ Thread Peek Seal Steam Solenoid Valve

Product Description

XHnotion Pneumatic XLH Series 300 degree G1/2'' Thread PEEK Seal Steam Solenoid valve
Features
1. Steam solenoid valve.
2. Medium temp. 0-300 ºC.
3. Working Pressure: 0.5-16Bar.
4. Body material: Stainless Steel.
5. Seal material: PTFE+Metal
6. Normally closed.
Warning:
Make sure the system is clean before installing please fix a filter in the front of solenoid valve for long life.
Specification

Model	Orifice(mm)	CV value	Pipe size	Working pressure(Bar)		Seal Material
SS304				Steam	Hot oil
XLH-10	15	4.5	3/8	0.5-25	0.5-25	Telfon+Metal
XLH-15	15	4.5	1/2
XLH-20	20	8	3/4
XLH-25	25	12	1
XLH-35	35	22	1-1/4
XLH-40	35	22	1-1/2
XLH-50	50	45	2

Coil
Advantage
1. Raw Material conforms to China industry standard, bought from famous factory.
2. Insulation grade: H class, good resistance to high temperature.
3. Machined by CNC to make sure the tolerance as the drawing
4.100% leakage testing under low pressure and high pressure.
5. All kinds of valve and seals material to meet custom requirement.
6.1 year quality assurance after shipment.
7. After-sales technique support.
Certificate
Packing & Shipping Packing:
Plastic Box / Color Box + Carton Box
Custom packaging are available, XHnotion brand packaging are available
Shipping:
Method: Air, Sea, Courier
Export port: Ningbo or Shanghai, China
Delivery time: 3 days to 30 days depends on actual orders.
Express: TNT, UPS, DHL, FedEx, SF Express.

Our Company XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)
In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.
This success of the company XHnotion Pneumatic is based on:
High class quality standard
Customer satisfaction
Fair price policy
Flexibility
The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001: 2008. And we got CE, RoHS, REACH certificate for international market.
XHnotion Pneumatic manufactures below products:
Pneumatic Components: Air cylinder, solenoid valve, FRL
Solenoid Valve: Standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve
Pneumatic Fittings: Plastic pneumatic fittings, metal pneumatic fittings, pneumatic muffler, water push in fittings
Air Gun & Couplers: Pneumatic couplers, air guns, air tool kits
Air Hoses: Air tubing, PTFE tubes, tube cutter, pipes
Why Choose US?
1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
Make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.
FAQ
Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.
Samples Policy:
For regular valves, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
