Ahyw Ywtp Da53t CNC Press Brake Machine for Metal Working

Product Description

Product Description Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

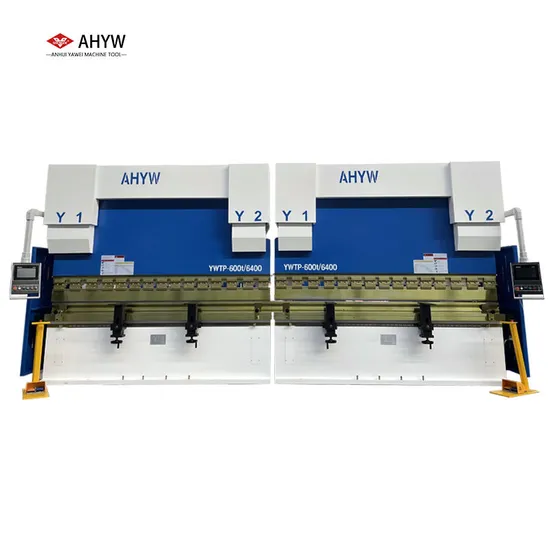

ANHUI YAWEI CNC TANDEM PRESS BRAKE YWTP Series CNC Synchro Tandem Press brakes use 2 same models pressbrake united for bending longer sheet, especially over 8m length, 2 machines can be bending independent for high productivity short metal bending, it uses same controller with synchro technology; different models can be also united with tandem options, one big press bending thick&larger parts, one small press bending thin&small profiles, it can be work together bending longer parts with reasonable design on 2 different size machines. Main features • Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
• Be capable of be controlled at random point within the stroke • Optional front feeding and side discharge devices facilitate the loading and unloading of large plates to improve the working efficiency
• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
• Deflection compensation table or crowning system for high precision
• Holland Delem DA58T CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure excellent performance Machine Block YWTP series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time. DELEM DA-53T CNC Press brake controller * "Hot-Key" touch navigation
* 10.1″ high-resolution color TFT
* Up to 4 axes (Y1, Y2 + 2 aux. axes)
* Crowning control
* Tool/material / product library
* Servo and frequency inverter control
* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
* TandemLink (option)
* USB memory stick interfacing
* Profile-T offline software Details Images Mechanical Quick Clamps Using mechanical fast clamp for upper dies, changing dies more convenient and safe. 42Crmo Toolings The press brake dies are made by 42Crmo steel, and the temperature of heat treatment up to 42°, ensuring the die service life. Mechanical Crowning Compensation Mechanical compensation allows precise deflection compensation over the entire length of the table. Technical Parameters
