High-Speed and Low-Breakage Double-Spiral Belt Design New Stirring and Mixing Equipment for Polymer Lithium-Ion Batteries

Product Description

Product Application
WLDH horizontal lithium battery powder ribbon mixer can be used for the materials mixing production in food, lithium battery powder , chemical plastic, dyestuff and cosmetic etc industries to mix solid-solid(powder and powder),solid-liquid(powder and liquid), especially, suit for mixing the material adhesive or containing coherent powder articles and that powder articles material which is added with more liquid(or pasty material) and features a quick mixing speed, a high precision, non-blind mixing area, a great filling coefficient, stable movement, sealed operation, without pollution to the environment, quick and clear discharge without residue, easy to use and maintenance.
Working Principle

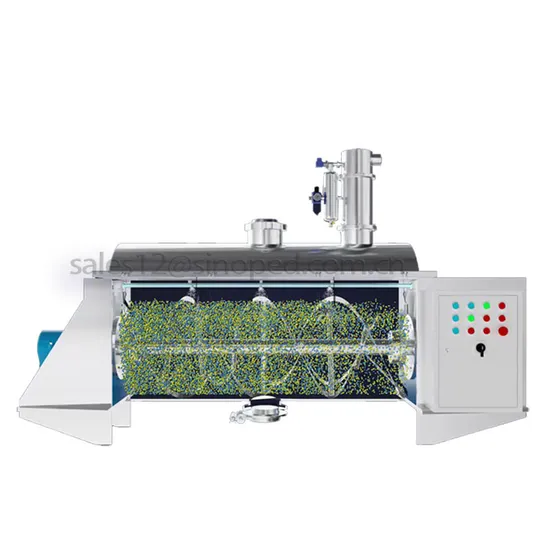

Horizontal ribbon mixer consists of transmission components, double-layer ribbon mixer, and U-shaped barrel. The coiling form of the outer spiral strip matches the direction of rotation to push the material from both ends to the middle, while the inner spiral strip pushes the material from the middle to both ends. The different angles and directions of the spiral strip make the material flow in different directions. The material continues to pass through Convection circulation and shear mixing achieve rapid mixing. There is a discharge port in the center of the bottom of the horizontal cylinder of the mixer. The spiral structure of the outer spiral belt cooperates with the rotation direction of the main shaft to drive the material inside the cylinder wall to the central discharge port for discharge, ensuring that there are no dead ends in the discharge of materials in the cylinder.

PRODUCT SPECIFICATIONS

Model No.	WLDH0.1	WLDH0.5	WLDH1	WLDH3	WLDH6	WLDH8	WLDH10~30
Max Work Volume	60L	300L	600L	1800L	3600L	4800L	6000-18000L
RPM	76	66	41	33	26	26	23/17
Motor Power	2.2	5.5	11	22	37	45	55/110
Overall Size LDH0.1~20cbm	1.08X0.758X0.615 ~ 8.5X2..8X3.3M
Net Weight/KG	330	955	1400	3300	5300	6800	8900/16000
Discharge/mm	100	350*120	360*120	360*130	500*120	700*120	700/140

Remark:1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact us to know more details about horizontal ribbon mixer machine.
Technological Advantages
Four exclusive configurations for the lithium battery industry Ensure high-quality lithium battery material mixing process
Complete Set of Ribbon Mixer
One complete Ribbon Mixer has include Auto Screw Powder Feeder , Main Ribbon Mixer Chamber, Discharge Screw Conveyor and Sieve . Full sealed and automatically. Also ensure safe during mixing job.
One 200L Using in a Food Factory for feeding the bag Packing Machine Product is kind of Condiment Powder
This Ribbon Mixer has equipped with one screw feeder, then connect with packer machine.
Sealed and full automatic packing line
Applications Scope

The horizontal ribbon mixer is a new type of mixing equipment with high efficiency, highuniformity, low energy consumption, low pollution and low breakage. It is widely used in coal powder, salt and other micro-particles, dairy product powder, chemical dust, petroleum Industry, ternary lithium battery and other new energy industries.
Related Product Features
Tell us the information : What materials need to be mixed?
What is the production capacity?
Is heating required during mixing?
Is the material wet or sticky?
Does it need to add liquid?
Does it need to be stirred?
We can provide you with a mixing machine that is more suited to your needs.
The following models are available for you to choose from: V type mixer
SZH double cone mixer
HTD lift IBC mixer
SYH tri-cone mixer
WLDH horizontal ribbon mixer
VSH/VJ conical screw belt/double screw mixer
SYJW single/shaft blade mixer
Packaging&Shipment
Packaging Details
Before sending the equipment to the customer, we will try to run the equipment for the customer until the customer is satisfied, we will wrap the equipment with film to avoid bumping and scratching, and use the standard wooden box to pack the equipment and pass the security inspection safely.
