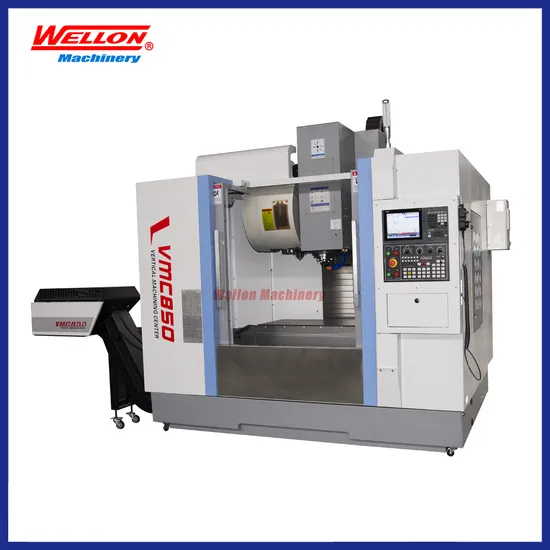

Automatic Fanuc Vmc850 Vertical Machining Center
Basic Info.
Model NO.
VMC850
Application
Glass
Process Usage
CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Certification
GS, CE, ISO 9001
Condition
New
X Axis Travel
800
Y Axis Travel
500
Z Axis Travel
500
Worktable Length
1000
Worktable Width
500
Spindle Taper
Bt40
Spindle Speed
8000
Max Tool Weight
8kg
Max Tool Length
300
Transport Package
Wood
Specification
CE ISO9001
Trademark
WELLON
Origin
Tengzhou China
Production Capacity
200 PCS/Month
Product Description
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type both are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as optional;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Air gun+Water gun;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
| Item | Unit | VMC850 |
| X axis travel | mm | 800 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 500 |
| Spindle nose to worktable | mm | 150-650 |
| Spindle center to column | mm | 550 |
| Leadscrew diameter X,Y,Z | mm | Φ40 |
| Linear guideway width X,Y,Z | mm | 35/35/35(Roller) |
| Worktable Length | mm | 1000 |
| Worktable width | mm | 500 |
| Max loading capacity | kg | 500 |
| T-slots(NO./width/pitch) | 5*18*90 | |
| Spindle taper | BT40-150 | |
| Spindle speed | rpm | 8000 |
| Main motor power | kw | 7.5/11 |
| Fast moving speed (X/Y/Z) | m/min | 36/36/30 |
| Cutting speed | mm/min | 1-10000 |
| Feed motor torque | N/M | 12/12/22 |
| Feed motor power | kw | 2.0/2.0/3.0 |
| Capacity | pcs | Arm type 24 |
| Max tool diameter | mm | 120 |
| Max tool weight | kg | 8 |
| Max tool length | mm | 300 |
| Positioning accuracy | mm | 0.008 |
| Repeat accuracy | mm | 0.005 |
| Length | mm | 3000 |
| Width | mm | 2300 |
| Height | mm | 2900 |
| Weight | kg | 4500 |
Standard accessories:
Fanuc 0i MF (5) control system
Belt type spindle from Taiwan 8000 rpm
24 tools Disc type ATC from Taiwan
3-Axis Roller linear guideway from Taiwan,
Ball leadscrew from Taiwan,
USB interface
Rigid tapping
Full closed cover
Automatic lubrication
Coolant system,
Work lamp,
Tri-color indication lamp,
Air gun+Water gun,
Heat exchanger in cabinet,
