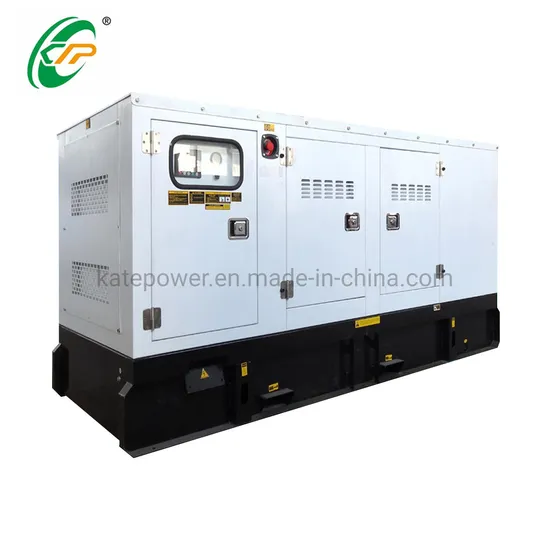

100kVA 200kVA 250kVA 300kVA 500kVA Soundproof Electric Power Silent Diesel Generator

Product Description

250kVA / 200kW SILENT type Diesel Generator
Powered by C engine and coupled with Brushless alternator.
Prime Power:
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby Power:
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Rated voltage:
Available with customer requirements.
Environment Conditions
Δ Environment temperature ≤40ºC
Δ Relative humidity ≤90%
Δ Altitude ≤1000m, Ambient)
If altitude higher than 1500m, each 300m will cause additional de-rating 4%

Genset Technical Data
Please contact our sales before ordering.
Δ TECHNICAL DATA

Genset Model	KT-C250S
Prime power (kVA/kW)	250 / 200
Standby power (kVA/kW)	275 / 220
Output frequency (Hz)	50
Rated speed (RPM)	1500
Rated voltage (V)	400
Rated current (A)	360.8
Phase	3
Fuel consumption of 75% load (L/hr)	39
Fuel consumption of 100% load (L/hr)	53
Noise level dB(A) @7m	72.3
Fuel tank capacity (L)	500
Dimension (LxWxH) (mm)	3400*1200*1900
Weight (kg)	2750
Engine model	6LTAA8.9-G2
Alternator model	UCDI274K
Voltage regulation rate	≤±1%
Random voltage variation	≤±1%
Frequency regulation rate	≤±5%
Random frequency variation	≤±0.5%

Engine Specifications
Engine model	6LTAA8.9-G2
Engine manufacturer	C - DCEC
Number of cylinders	6
Cylinder arrangement	Vertical in-line
Cycle	4 stroke
Aspiration	Turbocharged & Charge Air Cooled
Bore x Stroke (mm x mm)	114 x 145
Displacement (Liter)	8.9
Compression Ratio	16.6:1
Prime power/speed (kW/RPM)	220/1500
Standby power/speed (kW/RPM)	240/1500
Speed governor	BYC P7100/GAC 24V Electrical
Cooling system	Forced Water Cooling Cycle
Steady speed droop (%)	≤1%
Total lubrication system capacity (L)	27.6
Coolant capacity (engine only) (L)	11.1
Fuel consumption at 100% load (g/kWh)	197 (53L/hr)
Starter motor	DC24V
Alternator (Dynamo)	AC24V

Alternator Specifications
Alternator model	UCDI274K
Alternator manufacturer	/
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	250 kVA / 200kW
Rated speed	1500 RPM
Rated frequency	50 Hz
Phase	3
Rated voltage	400V (Available with customer requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23
Remark
Alternator option:
Other alternator manufacturer:Leroy Somer, Marathon and Mecc Alte.

Δ PRODUCTS PHOTOS
Δ DETAILED PHOTOS
Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Question: Does your generators has global warranty?
Answer: Yes, most of our products like generator enjoy the global warranty service. And the alternator we use like Leroysomer, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Question: What's your delivery time?
Answer: Our normal delivery time is 25 working days. But if your order is some special engine and alternator, then the delivery time is longer.
